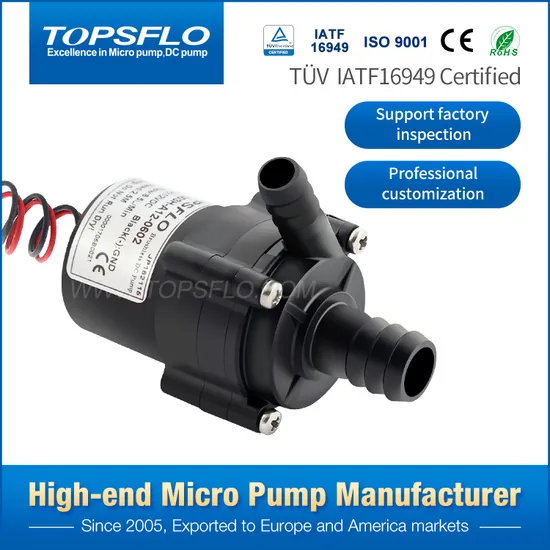

Computer Mini Brushless DC Circulation Water Cooling Fan Pump

Product Description

Why choose TOPSFLO Factory ? ♦ TOPSFLO is the only double certified enterprise by German TUV IATF16949 & ISO9001 in the pump industry
♦ 16 years of industry experience.Independent research and development, national high-tech enterprise, multiple domestic and foreign invention patents
♦ Annual production capacity of 3,008,000 pieces
♦ 4 laboratories that meeting the CNAS certification standard
♦ 80% of the products are exported to high-end market in Europe and America

Remarks:
- We are High-end Brushless DC pumps Manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us


Customer Reviews
You want it, We all have !
APPLICATION FIELD Trustworthy micro pump supplier ♦ Home appliance Electric Instant Water Heater "Zero cold water" water heater Air Source Water Heater Dishwasher Intelligent Toilet Home Brewing Solar Energy Water Heater Water Cooling / Heating Mattress Computer Water Cooling System ♦Food industry Carbonated Beverage Machine Water Dispenser Coffee Machine ♦Automotive industry Car Engine Pre-heating EV Battery Cooling System
If you don't have one of your application areas, please contact us!
Computer Mini Brushless DC Circulation Water Cooling Fan Pump
Application:
Water Dispenser/Water Coolers , Coffee Maker/Coffee Machine , Beverage Dispenser/Juice Machine
Water Purifier, Tea Maker, Milk Dspenser , Fountain, Hydroponics
Instant filtered drinking system
Features:
Advanced magnetic driving technology, static-seal without any leakage forever
High efficiency ECM brushless DC motor with long lifetime
Heavy duty work,can sustain 24 hours continuous running
Special designed high efficiency closed-impeller
Wide voltage range suitable for battery power supply
All wetted materials FDA certified (food safe)
Small size, light weight
Max temperature 105ºC
Durable permanent magnetic rotor and high density ceramic shaft
Specification:

Model:TL-B03
Model	Product Code		Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
B03	TL-B03-A12-0602		6.5	12	0.43	2.5	5.16
	TL-B03-A24-0602		6	24	0.22	2	5.28
	TL-B03-A12-0501		4.8	12	0.2	1.2	2.4

Application Conditions
1	Environment temperature						-40~40ºC
	The use of water temperature						-40~105ºC
2	Operation Surroundings						70%RH and 100%RH
3	Working liquid						Pure Water,antifreeze,etc
4	Max pressure / Continue work Pressure						1.8Mpa / 0.5Mpa

Get more Technical data, please contact us !
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
Get more detail, please contact us !
