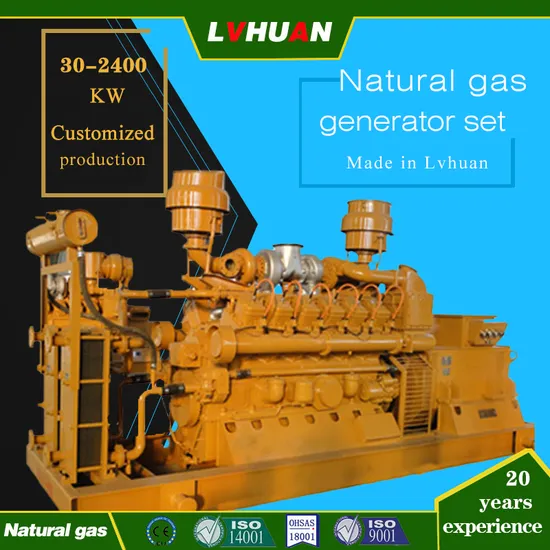

Natural Gas Genset CHP Power Plant LPG LNG CNG Biogas Engine Generator 20kw-1MW Gas Generator

Product Description

Natural Gas genset CHP Power Plant LPG LNG CNG biogas engine Generator 20kw-1MW Gas Generator
Scope of Application
Gas electricity generation, using pure and high-LHV natural gas to provide stable, continous and large amounts of electricity.
Requirements For Natural Gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
--The ratio of CH4 in natural gas ≥70%
--Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
--H2S ≤ 20mg/Nm3
--Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
--Moisture content ≤ 40g/Nm3
Product Parameters The following are some models,Sincerely welcome to visit our factory and build future cooperation relationship.

Natural gas generator list
Gen-set mode	Prime power	Continuous power		Engine Mode	Displacement
LHNG30	30kw	24kw		LH4105	4.32L
LHNG40	40kw	32kw		LH4105	6.45L
LHNG50	50kw	40kw		LH4135	8.58L
LHNG60	60kw	48kw		LH4135	8.58L
LHNG70	70kw	56kw		LH6135	12.8L
LHNG80	80kw	64kw		LH6135	12.8L
LHNG90	90kw	72kw		LH6135	12.8L
LHNG100	100kw	80kw		LH6135	12.8L
LHNG120	120kw	100kw		LH12V135	25.75L
LHNG150	150kw	120kw		LH12V135	25.75L
LHNG180	180kw	144kw		LH12V135	25.75L
LHNG200	200kw	160kw		LH12V135	25.75L
LHNG300	300kw	240kw		LH6190	35.70L
LHNG400	400kw	320kw		LH12V190	71.45L
LHNG500	500kw	400kw		LH12V190	71.45L
LHNG600	600kw	480kw		LH12V190	71.45L
LHNG700	700kw	560kw		LH12V190	71.45L
LHNG800	800kw	640kw		LH12V190	71.45L
LHNG900	900kw	720kw		LH12V190	71.45L
LHNG1000	1000kw	800kw		LH16V190	71.45L
Parameter of natural gass generator
Rate Voltage			400V/230V
Phase			3Phase 4 wires
Rate Frequency			50HZ/60HZ
Power Factor			0.8
Voltage Regulating Range			95%-105%
Voltage Steady State			≤±2%
Voltage Transient State			≤±10%
Voltage Settling			≤1S
Voltage Volatility			≤±0.5%
Frequency Steady State Regulation Rate			≤0.5%
Frequency Transient State Regulation Rate			≤±10%
Heat Consumption			10mj/kw.h
Pressure			5-20kpa
Intake Mode			Natural intake
Sparking Mode			Sparking plug
Voltage Regulation Mode			automatic
Speed Regulation Mode			Electronic speed regulation
Lubricating Mode			Pressure and splash
Cooling Mode			Closed/open circulating water cooling
Starting Mode			24V electric motor
Overhaul Time			≥30000h
Noise			≤105aB(A)
Exhaust Temperature			≤650°C

High Configuration
--Ignition system: ALTRONIC(USA)
--Starting system: DC24V electric motor.
--Mixer: IMPCO(USA)
--Sparking plug:STITT
--Engine Control System: Woodward(USA), HEINZMANN(Germany)
--Electric Control System: ComAp(Czech), Deepsea(UK)
--Alternator: Siemens, LEROY-SOMER, Marathon
Accessories
1) Application scope of the Accessories, such as 16v190,12v190, 8v190, 6190, 6135 and other engine types.
2.)All parts were from original factories or professional factories, complete in specification, keep good quality.
Our Advantages --Advanced configuration keep accurate ans stable working condition under high speed working speed
--High generalization, easy maintenance, low maintenance cost.
--Economical, low operating cost
--Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
--Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
--Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
--Suitable for differnt concentration methane and propane, variety of quality gas.
--Precise air-fuel ratio rarefied combustion control and Generator speed/load control
--Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.
Visitors form oversea:
Our Services: (1).Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
(2).In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.

(3).After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.

(4).Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
FAQ 1)How to choose the right model?
Firstly, depending on the loading equipment or the total power you need.
Secondly, depending on the hours the genset working per day.
Thirdly, depending on the LHV of the fuel gas.
Please consult us and we will recommend you the most suitable modell for your need.
2) What kind of gas could generate electricity?
We use the internal combustion engine. And the suitable gas are natural gas, biogas, syngas and LPG.
If the fuel gas is not the natural gas, please contact us and we will recommend you the suitable model based on the LHV of the fuel gas. And we will provide our professional suggestions.

3) What will be the electricity used for?
Please kindly tell us the electricity will be used for the loading equipment or for the grid. We will recommend the suitable model for the loading equipment and the suitable configuration for the grid.

4) Voltage and frequency required.
Necessary information could be supplied. Our standard configuration is 220/380V and 50/60HZ. Please contact us for other voltage and frequency. We will make the suitable proposal.

5) What is the consumption of the genset?
This will be based on the LHV of the fuel gas. Please contact us and we will provide you the exact data.
6) Warranty
1Year not including the quick-wear parts. But we could provide you some free parts with the genset.
