Cw61160 6114 61125 61110 Conventional Machine Tool Lathe Weight of Workpiece 8000kg Factory Price
| US$38,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CW61160
Type
Horizontal Lathe
Processing Accessory
Conventional Metal Machining
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Spindle Motor and Manual Feeding
Controlling Mode
Manual Control
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Hole
130mm
Spindle Taper
Metric 140#
Width of Bed
780mm
Carriage Travel
650mm * 280mm
Chuck
4 Jaws Chuck
Sleeve Diameter
160mm
Sleeve Taper
Metric80#
Sleeve Travel
300mm
Rapid Feed:Long/Cross
3400mm/Min,1700mm/Min
Main Motor
22kw
Coolant Motor
0.15kw
Rapid Feed Motor
1.5kw
Distance Between Centers
1.5m,2m,3m,4m,5m,6m,8m,10m,12m Optional
Metal Machining
Shaft Parts, Cylindrical and Disc Parts of Differe
Cutting Tools
HSS and Carbide Steel Cutters
Transport Package
in Wooden Case
Specification
Max. working weight 8000kg
Trademark
GESEN
Origin
China
HS Code
8458190000
Production Capacity
500sets/Year
Product Description

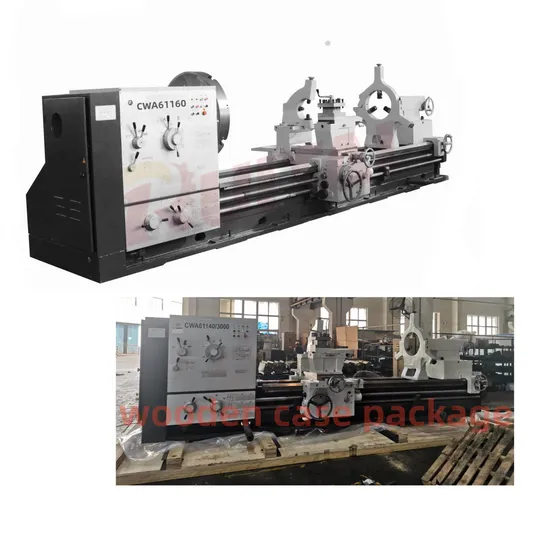

Product DescriptionCONVENTIONAL LATHE HEAVY DUTY
The CWA series horizontal machine tools are universalconventionallathe, which are applicable to machining shaft parts, cylindrical and disc parts of different materials with HSS and carbide steel cutters.
The conventional lathe is capable of turning, external circle, end face, groove cutting, cutting, boring, turning and boring of inner cone, various threads and other processes.
The main shaft of the machine adopts a three-support structure, and the whole bed forms a box shape, so that the bed has a high rigidity.
The machine tool is equipped with a separate oil pump for forced lubrication. The slide plate, knife rest, bed saddle and tailstock can move quickly, making the machine tool have the characteristics of strong rigidity, high efficiency, safety and reliability, convenient operation and beautiful appearance. Detailed Photos
Product Parameters
| CONVENTIONAL LATHE 8000kg | |
| MODEL: | CWA61100 CWA61125 CWA61140 CWA61160 |
| Max.weigth of workpiece | 8000kg |
| Max swing over bed | 1000mm 1250mm 1400mm 1600mm |
| Max swing over cross slide | 620mm 870mm 1000mm 1200mm |
| Distance between centers | 1.5m,2m,3m,4m,5m,6m,8m,10m,12m |
| Width of bed | 780mm |
| HEAD STOCK | |
| Spindle hole | φ130mm |
| Spindle taper | Metric 140# |
| Spindle speeds | 3.15-315r/min or 2.5-250r/mm. Grade:+21,-12 |
| GEAR BOX - THREADS & FEEDING | |
| Metric threads range(kinds) | 44/1- 120mr |
| Inch threads range(kinds) | 311/4-24/inch |
| Moudle threads range(kinds) | 45/0.5-60mm |
| Diametral threads range(kinds) | 381/2-56DP |
| Longitudianal feeds range(kinds) | 56/0 . 1- 12mm |
| Cross feed range(kinds) | 56/0 .05-6mm |
| Rapid feed:long/cross | 3400mm/min,1700mm/min |
| TOO L POST | |
| Distance between Center&Tool | 48mm |
| Tool section | 45×45mm |
| CARRIAGE | |
| Cross slide trave | 650mm |
| Compound rest travel | 280mm |
| TAILSTOCK | |
| Sleeve diameter | φ160mm |
| Sleeve taper | Metric80# |
| Sleeve travel | 300mm |
| MOTOR | |
| Main motor | 22kw |
| Coolant motor | 0.15kw |
| Rapid feed motor | 1.5kw |
