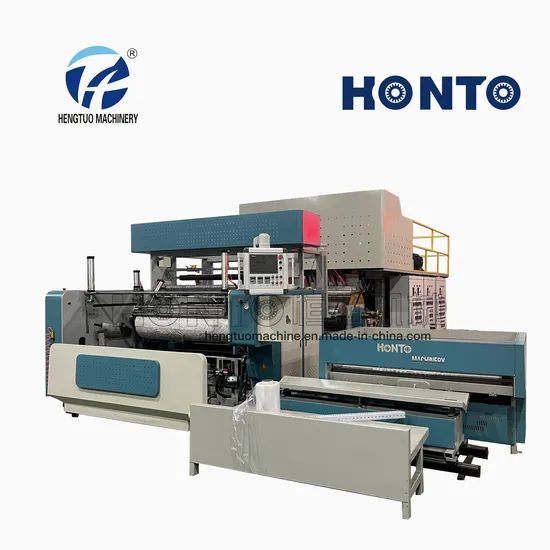

Fully Automatic 3/5 Layer Stretch Film Cling Film Making Machine Kyrgyzstan

Product Description

HT-1000/1200/1500/1600/2000 Three extruder co-extrusion 3 layer /5 layer
Stretch film machine /Pallet Wrap Film machine/Cling film machine/
Casting film machine
Double shafts Roll Changing /Intelligent Temperature Control
Stretch Film Making Machine
Casting film making machine
Cling film making machine
USE:
This machine is used for the production of plastic LLDPE stretch film, stretch film, and cling film. The products are widely used in food preservation, commodity packaging, and bulk cargo container pallet packaging. It is a better substitute for heat-shrinkable packaging film in transportation.
What is the details of our Stretch Film Extruding Machine
1. To ensure good plasticization and high quality and high output, special mixing refining design is adopted in the machine's alloy screw which consists of import static state mixer.
2. The bi-directional loop design and helix runner inside cooling steel roller are adopted to stable the temperature on the surface of the roller.
3. The machine is easy to test and adjust the thickness of film, the Slitter could be changed without stopping the machine.
4. The winding system applys air knife online device, which can automatically cut the film in different width quickly.
Main Technical Parameter

Model	HT-1500 three-layer co-extrusion
Screw diameter	90/70/70
L/D	32:1
T-die width	1900mm
Finished film width	1500mm
Finished film thickness	0.01-0.03mm
Max. extrusion output	250kg/h
Main motor power	45/22/22kw
Heating power	50kw
Air consumption	0.8m3/min
Water consumption	0.7m3/min
Total power	150kw
Power supply	380/3/4/50
Overall dimension	10000*5000*3000mm

Optional equipment:
1. Hydraulic screen net changer
2.Industrial chiller
3.Vacuum system
4.Flexo printing device
5.Auto paper tube handing system
6.Auto Loader





Finished Film Roll And Application

Company Information
RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.
Main products: Three layer co-extrusion stretch film making machine, Double extruder stretch film making machine, single extruder stretch film making machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine etc.
Packaging & Shipping
1.We will conmissioning machine before delivery.
2.Packing: If shipped FCL, wrapping with stretch film or bubble film;If shipped LCL,stretch film wrapping with anti rust treatment,wooden case packege.
Our Services
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
