High Quality LAN Cable UTP STP FTP SFTP CAT6 Cable

Product Description

High quality Lan cable CAT6 UTP CABLE
Cable specification

Part NO: CAT6 UTP CABLE			Design
Product Description
Application:
Horizontal Wiring in LAN CABLE
Reference Standard
ISO/IEC 11801
TIA/EIA568B			Performance
Multi-construction			Frequency	RL	Attenuation	NEXT	ACR
4 Pairs (8 Cores)			(MHz)	(dB)	(dB/100m)
				min.	max	(dB)	(dB)
Cable Construction			1	20.0	2.02	74.30	72.28
Conductor	Solid Bare Copper		4	23.0	3.78	65.27	61.49
AWG	23		8	24.5	5.32	60.75	55.43
Conductor Dia.	0.565±0.005mm		10	25.0	5.95	59.30	53.35
			16	25.0	7.55	56.24	48.68
Insulation	Solid PE		20	25.0	8.47	54.78	46.31
Thickness	AVG: 0.225mm, MIN: 0.22mm		25	24.3	9.51	53.33	43.83
Insulation Dia.	1.00±0.02mm		31.25	23.6	10.67	51.88	41.20
Each Pair is twisted ,Unshielded			62.5	21.5	15.38	47.36	31.98
			100	20.1	19.80	44.30	24.50
Polyester	NO		250	17.3	32.84	38.33	5.48
Filler	Yes		Frequency	ELFEXT	PSNEXT	PSELFEXT	Impedance
AL/Pet	NO		(MHz)	(dB)	(dB)	(dB/100m)	(Ohm)
Drain Wire	NO		1	67.80	72.30	64.80
Rip Cord	Yes		4	55.76	63.27	52.76
			8	49.74	58.75	46.74
Jacket	PVC		10	47.80	57.30	44.80
Thickness	AVG: 0.52mm, MIN: 0.46mm		16	43.72	54.24	40.72	100±15
Outer Dia.	6.1±0.30mm		20	41.78	52.78	38.78
Jacket Color			25	39.84	51.33	36.84
			31.25	37.90	49.88	34.90
Color			62.5	31.88	45.36	28.88
Insulation color are:			100	27.80	42.30	24.80
Blue, White/Blue			250	19.80	36.30	16.80
Orange,White/Orange			Characteristics
Green, White/Green			Max.Conductor DC Resistance at 20ºC(Ω/Km)				<93.8
Brown, White/Brown			Rated Temperature(ºC)				75
			Rated Voltage(V) 300V
Marking			Velocity ratio				65%
According to customer

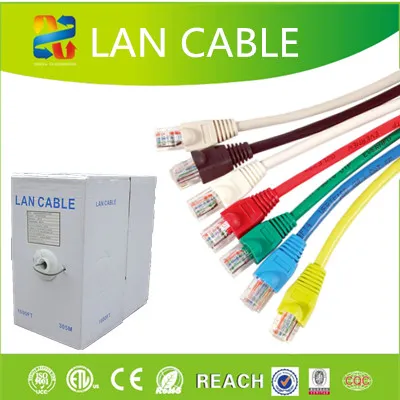

Cable photos
Cable description
CAT6 UTP CABLE:

Category 6 (Cat6) is a "twisted pair" network cable used for carrying data signals at speeds of up to 550MHz of Bandwidth. This cable is preferred for more advanced networking installations where a higher bandwidth than normal is required.
PVC Jacket
Our Cat6 Solid Bulk Cable comes wrapped in a sturdy PVC (Polyvinyl Chloride) Jacket, built to withstand high levels of stress, pulling, and pushing.
UTP (unshielded twisted pair)
This type of cable comes with 4 Unshielded Twisted Pairs (UTP), if your installation calls for a type of cable that can withstand electrical interference and prevent signal loss.
Solid Cable Design
Designed for more straight-forward, simple installations, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line. If you're looking for a type of cable that does require a more flexible design.
23 AWG
For this particular cable, the gauge is 23 AWG, which is a diameter of about 0.0226 Inches, or 0.573mm. 23AWG is the Industry Standard for any typical network cable installation. American Wire Gauge (AWG) is the standardized gauging system for measuring wire sizes.
Pull-Through Design
Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason why our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.
FEATURES
· Connecting between Ethernet and network device
· CCA - Copper Clad Aluminum (CCA)
· Can be used to make smaller Cat5e cables
· Comes in an easy pull box
· Meets or exceeds Cat5e specifications
· 4 Pair Solid twisted Wires
· 23AWG
· Length: 1000ft(305m)
· 550Mhz speed
· Foot-marked cable
· Color: Black
