100-2000kg/H Waste PE PP Film Plastic Film Washing Machine

Product Description

100-2000kg/H Waste PE PP Film Plastic Film Washing Machine
Application Areas:
Industrial Film Printing Packaging Plastic Film Recycling Crushing Washing Line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films,PE waste film,PP waste film,PVC waste film,industrial film,printed film and etc.
Description :
PP PE plastic washing recycling machine is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.
After plastic film/bag flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine.
This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different status of waste plastic bags/films. This PP PE plastic recycling machine could layout as "L", "S" or "U" shape according different workshop.
Features :
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.

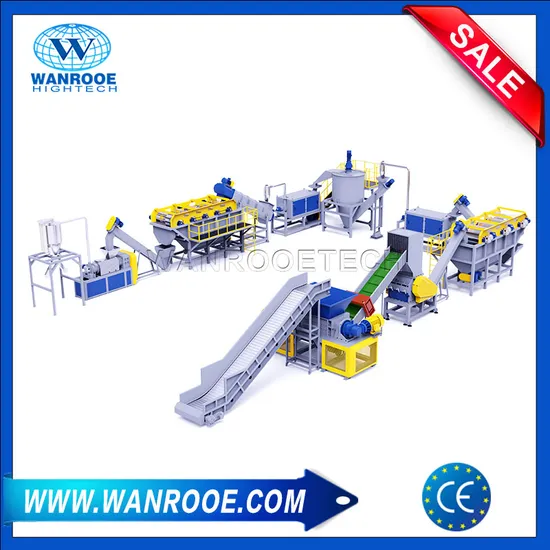

This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.
Advantages:
1. Our price is competitive and we take responsibility to any quality uncertainty.
2. Our pursuit of first-rate quality, reasonable prices and comprehensive after sales services offers both potential and long-standing clientele confidence in our company.
3. High automation level producton line to reduce cost on labor and increase production.
4. Innovative design of hot washer and washing tank.
5. PLC control, Choose motor brand according to customer's requirements.
6. We use 304 stainless steel to produce machines which contacting water.
7. Professional design team to design every project according to cutomer's need
Details:
System Configuration:

No.	Machine Name	Note
1	Bale breaker	Custom
2	Belt Conveyor	PVC Belt
3	Metal detector	Custom
4	Label Remover	Remove the label from the bottles.
5	Manual Sorting Belt	Custom,PVC Belt
6	Belt Conveyor	PVC Belt
7	Crusher	Blade metal:alloy(9CrSi or SKD-II)
8	Screw Loader	Made of Stainless steel
9	Hot Washer	Made of Stainless steel ,can put some soda
10	High-speed Friction Washer	Made of Stainless steel Can be design Two-screw
11	Sink-Float Tank	Single-screw or Two-screw
12	Dewatering Machine	Vertical or Horizontal
13	Drying system	Made of Stainless steel
14	Storage hopper	Normally 1000L
15	Flakes Pneumatic Separating Machine	New style label remover for flakes

Technical Parameters

Model	Material	Install Power	Capacity	Water Consumption	End Products Humidity
PNQF-PET300	PET,PS,PC,ABS	100kw	300kg/h	4-6litres/kg	<=3%
PNQF-PET500	PET,PS,PC,ABS	150kw	500kg/h	3-6litres/kg	<=3%
PNQF-PET800	PET,PS,PC,ABS	200kw	800kg/h	3-5litres/kg	<=3%
PNQF-PET1000	PET,PS,PC,ABS	280kw	1,000kg/h	2-3litres/kg	<=3%
PNQF-PET1500	PET,PS,PC,ABS	350kw	1.5Tons	2-3litres/kg	<=3%
PNQF-PET2000	PET,PS,PC,ABS	400kw	2Tons	2-3litres/kg	<=3%
PNQF-PET3000	PET,PS,PC,ABS	500kw	3Tons	2-3litres/kg	<=3%

FAQ
1,Are you trading company or manufacturer ?
A:WANROOETECH is a Factory-Outlet Platform for excellent manufacturers only!
2,As the shipping period will take long time, how can you make sure the machine won't be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

3,I am foreign customer, if the product's part is broken, how can get help from you?
A:Some standard configurations you can buy in your local market, such such as SIEMENS Motor, SKF bearing.

4,Could i know the process of manufatcuring production after placing the order?
A:Our sales will share video after testing, or take online video when testing machine. Of course, also welcome you to our factory to see machine testing.

5,Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity .

6,Where is your factory located? How can I visit there?
A:Our company is located in ZhangJiaGang City, China, really glad to invite you to come to our office to have a face to face meeting before we build order.

7,We are new buyers, do not know how to buy? Can we use our own freight forwarding?
A:We are a very experienced company, we will provide you with the guidance of security. We have l ong-term freight forwarders partners to ensure delivery goods to various countries for our customers .You can use your freight forwarding.
Our service
1. One year guarantee for whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well
