AC Leadshine Hybrid Servo Motor Driver H2-2206 Closed Loop 8m Encoder Line

Product Description

Product Description
Product Parameters

H2-2206	The minimum value	Typical values	The maximum	Unit
Continuous output current	0	-	6	A
Input power voltage	180	220	230	VAC
Logic input current	7	10	20	mA
Pulse frequency	0	200	300	kHz
Insulation resistance	100	-	-	MΩ
Alarm output logic current	-	-	100	mA

Cooling way	Natural cooling or additional radiator
Using the environment	Use occasions	Avoid dust, oil mist and corrosive gas
	Temperature	0°C-50°C
	Humidity	40-90%RH
	Vibration	10~55Hz/0.15mm
Keep the temperature	-20°C-65°C
Weight	1.4kg

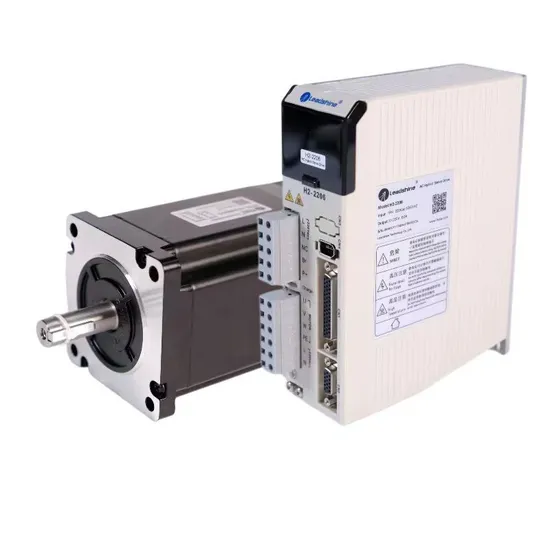

H2-2206 series: H2-2206 + 863HSM80H-E1 + 8m Encoder line
Related products 863HSM80H-E1 8m Encoder line Reducer
