The Energy-Saving Motor for Industrial Sewing Machine
| US$40.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SSFT-550
Casing Protection
Open Type
Number of Poles
6
Structure and Working Principle
Brushless
Certification
ISO9001, CCC
Brand
Powsew
Poutput
550W/650W
Phase
One Phase
Voltage
110V/220V
Material
Copper Wire
Magnet
Strong Magnet
Torque
Within 7.8n.M
Warrenty
2 Years Warrenty
Transport Package
Carton
Specification
32X27X21
Trademark
POWSEW
Origin
Lishui
HS Code
8501310000
Production Capacity
80000-90000sets/Year
Product Description

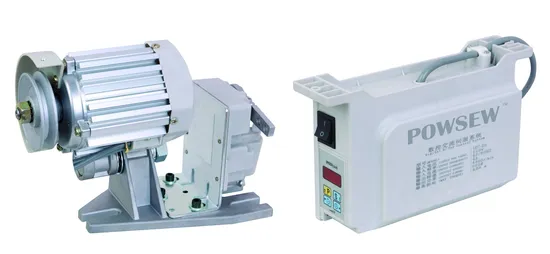

SSFT-550:BRUSHLESS SERVO MOTOR
Main Features 1.Remarkable energy-saving:The motor starts instantly, stops instantly, has no -loading running, and it could save 60%-80% power at least comparing with the clutch motor. 2.Speed Set: The changeable range for the motor speed is 100rpm-4500rpm.The speed change is based on 50r separated up and down. The maximum speed could be setted or locked when you step the pad to the end! 3.Super width voltage work: AC80V-140V/AC140V-260V normal work. 4.One motor, much function: It could be instead of all the clutch motors within 750W. 5.Fast and Low starting sewing set: It could be fast and low starting sewing set by starting instantly.
6.Balance output power: Its output power matches with need of sewing machine automatically, economizing power.
7.Stepless change speed: The stepless change speed is controlled by foot in the operation.
8.Low speed, high torque: the speed of 600rpm starts, and the output power is 3Nm at least.
9.No maintenance, long life: Brushless design, no parts damage.
10.Simple structure: small volume, light weight, and the net weight is just 4.5 kg.
The Parameter:
| OUTPUT POWER | VOLTAGE | CYCLES | SPEED | MAX.TORQUE |
| 550W | 220V/110V | 50/60Hz | 0-4500RPM | 4.5N.m |
| 650W | 220V/110V | 50/60Hz | 0-4000RPM | 6.8N.m |
| 750W | 220V/110V | 50/60Hz | 0-3500RPM | 7.8N.m |
