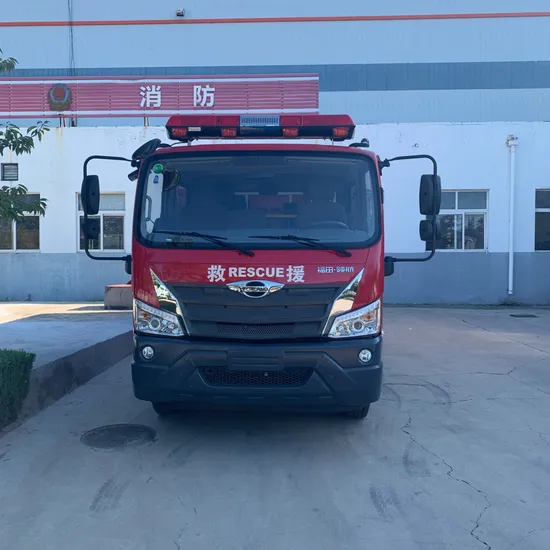

6*4 4*2 460HP Carbon Dioxide Water Tank Foam Fighting Fire Truck

Product Description

Product Description
1.Fire truck
Also known as a fire truck, it is a vehicle specially used for firefighting or other emergency rescue purposes. Fire trucks can be divided into pump trucks, ladder trucks and other special vehicles according to their functions.
Fire trucks in most areas are painted bright red (some areas also have bright yellow fire trucks), with sirens and flashing lights on the roof. Fire trucks are a general term for various types of fire trucks equipped with various firefighting equipment and firefighting appliances. They are currently the main tool for firefighting forces to fight fires and are the most basic mobile firefighting equipment.
2.Fire truck classification
There are many types of fire trucks, which can be divided into the following categories: water tank fire truck, foam fire truck, carbon dioxide fire truck, dry powder fire truck, foam-dry powder combined fire truck
3.The purchase of fire trucks
The purchase of fire trucks is mainly divided into two categories: the purchase of garrison fire trucks and the purchase of special-purpose fire trucks.
The purchase of garrison fire trucks: mainly refers to fire trucks for fixed working environments such as warehouses, residential areas, commercial areas, and special equipment storage areas. Fire trucks that should be used for various relatively predictable fire operations. The majority of vehicle users can purchase relatively common models based on actual work requirements and fire response facilities. For example: large finished fuel depots can choose foam fire trucks and dry powder fire trucks. School communities can just buy water tank fire trucks.Detailed Photos

TRUCK CHASSIS TECHNICAL SPECIFICATION
Main specification		Overall dimension(L*W*H)		10025x2500x3600mm
		Water tank volume		16,000 Liters
		Tank material		Q235B Carbon Steel
		Cabin		double cabin,two row,5 seats,with Air conditioner, electronic windows, USB,
Chassis		Drive modle		6x4 Right hand drive/Left hand drive
		Front axle loading		9,000 kg
		Rear axle loading		16,000 kg
		Wheel Base		4575+1400 mm
		Tyre size & number		12.00R20, with one spare tyre
		Max speed		90km/h
Engine		Brand		Weichai
		Horse power		336 hp
		Emission		Euro 2
WATER TANK SPECIFICATION
Tank capacity		16000 liter water tank
Tank material		stainless steel
Fire pump		Model		/	CB10/60,Normal pressure pump
		Pressure		Mpa	≥1.0
		Max suction height		m	7
		Flux		L/S	60
		Time of drawing water (s)		s	≤35
Fire monitor		Model		/	PL48
		Fire fighting nozzle range		Water (m)	≥60
				Foam (m)	≥55
		Flux		L/S	48
		Rotation angle		(°)	360
Standard configuration		Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole

Product Parameters
EQUIPMENT CONFIGURATION
Free 6 technical documents, at least
34 fire extinguishing equipment and 7
demolition rescue tools FIRE FIGHTING PUMP
With independent fire pump room,
operation is convenient for fire fighters.
according to capacity, we have CB10/20,
CB10/30,CB10/40,CB10/60 FIRE FIGHTING GUN
Reliable performance, high pump flow
rate high, far throw range. According to
capacity, we have PS20,PS30,PS40,PS50 CONTROL INTEGRATION
With intelligent control integration
system, ensure the stability of the entire
operating vehicle. The whole truck body
anti preservative treatment, welding is
firm, smooth and even.
Features:
1.The fire trucks are modified on chassis of motor truck, and the special purpose part consists of fluid container, pump room, hose box, power output & transmission system, pipe system and electrical system. It is widely used in urban public security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out a fire quickly, is an ideal fire fighting equipment.
2.The fire truck has streamline design, nice appearance, flexible control, economical and practical. The inside separated material is made of high-strength aluminum alloy. The layout is reasonable and every part is fixed by special fixture.
3.The fire truck adopts double rows integral structure, and can take 6-8passengers; it can put out fire while running, which has a long distance range and strong extinguish power. Normal pressure, medium-low pressure, high-low pressure pump is optional.
If you have special demand of fire truck, please call us, and we may design.Packaging & Shipping
Company Profile
Shandong Chengda Group is a group company integrating design, development, production and sales. lt has two entity companies, six trading companies, one 4S store and car rent and operate company.The two entity companies currently have 520 employees, including 120 senior and inter media technicians.
Shandong Chengda Group has more than 100national product patents and has the right to import and export.The six trading companies of Shandong Chengda Group have 8 sales teams with a total of more than130 people, mainly engaged in export trade.
Certifications
At present, the export market covers developing countries such as Africa, Southeast Asia, the Middle East, South America, and Central Asia, as well as developed countries in Europe and the United States.
Customers from various countries come to visit our factory and have reached a long-term cooperation with our company. Not only that, when the trucks are delivered to customers, our trucks work well and have a newly designed appearance, which has won unanimous praise from customers . Customer satisfaction is our long-term business purpose
FAQ
1.What are your terms of payment?
T/T with a 30% deposit and a 70% balance will be paid before delivery.
We will show you photos of the products and packages before you pay the balance.
2.What's your minimum quantity? 1 set.
3.What is your packing? Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ, or land transportation.
4.How about delivery time?Generally speaking, 25 workdays after we received 30% of the contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
5.How to judge the quality of products?We will show you photos and videos, trading order. You are welcome to visit our factory at any time.
6.Why do you trust and choose us? --Complete production line, from trailer Design to Delivery.
-- ISO 9001: 2008 and CCC quality certificate.
--Use 100% famous brand spare parts you want.
-- Accept customization requirements.
--We are trusted by clients from Africa, Australia, South America, Indonesia, and so on.
--We accept flexible payment terms, T/T, or other.
7.Can I customize the painting and the logo?Yes, we offer customized logos for any type.
Please contact us for more detailsJennifer
ChengDa Group24 hours online, waiting for your kind inquiry.
