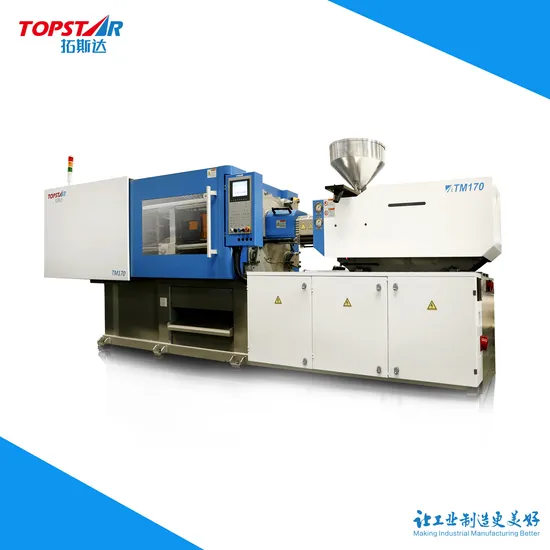

Nylon Cable Tie Mould & Injection Molding Machine

Nylon Cable Tie Mould & Injection Molding Machine

US$35,000.00
1-4 Pieces
US$30,000.00
5+ Pieces

Basic Info.

Model NO.
TM170
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Screw Diameter
40mm
Injection Pressure
1259kg/Cm2
Shot Weight
154G
Screw L:D
17.8
Screw Stroke
135mm
Injection Speed
Injection Speed
Screw Speed
151r.p.m
Nozzle Contact Force
2.7 Tons
Injection Rate
133cc/Sec
Plasticizing Capacity
11g/Sec
Clamp Force
80t
Mold Clamp Stroke
300mm
Max Daylight Opening
660mm
Mold Thickness(Min-Max)
125-360mm
Platen Dimension
530*508
Transport Package
Factory Standard Packing
Specification
4.0*1.1*1.72M
Trademark
TOPSTAR
Origin
China
HS Code
8474809090
Production Capacity
5000pieces/Year

Product Description

Nylon Cable Tie Mould & Injection Molding Machine
Excellent design features make Elite machinery very versatile to use high productivity, durability, and easy to maintain
Elite utilizes key components from the world-renowned manufacturing of Servo system, Microprocessor controller hydraulic systems electrical parts and lubrication parts
The design utilizes very sturdy mechanical components.
Ability to process all types of Thermoplastic and Thermoset materials with a wide range of Screw and Barrel for each application
Machine range from 90 Ton to 1650 Ton and Immediately available range from 80Ton to 470Ton
Elite machine offers the best combination of ROI (Return of Investment) and COW (Cost of Ownership)
About us
Guangdong Topstar Technology Co., Ltd.(Abbr. TOPSTAR, stock code: 300607)is the first robot key enterprise listed on GEM in Guangdong province, focusing on the R&D, manufacturing and sale of the industrial robots as the representative of intelligent equipment, dedicated to system integration, product manufacturing, software development and industry internet -- four in one intelligent manufacturing integrated service provider.
TOPSTAR adheres to the brand advocate " Making industrial manufacturing better" and the core value "one year investment return for the automation solution". The core products include intelligent equipment represented by industrial robots, industrial internet of things software represented by control systems and MES, providing customers with turnkey solutions for intelligent production environment based on industrial robots and creating a healthy intelligent manufacturing ecosystem.
There are more than 30 sales and service branches all around the country, and serving for 5000 customers, including Midea, BYD Auto, CHANGCHENG Auto, BIEL, etc.
Elite with more than 30 years of experience in Injection molding machine manufacturer.
Topstar acquires Elite injection molding machine in 2019, our injection molding machine factory in Changshu, Jiangsu Province
Welcome to visit us!
Other products:
1.injection robot series
2. auxiliary equipment:
hopper dryer, drying and dehumidifiers, autoloader, mold temperature controller, chillers, rotary mixer,granulator, etc.
3. Industrial robot
