High Quality 0.1 - 96A Gwiec/OEM/Blank Contactor Safety Lrd Thermal Overload Relay

Product Description

Product Description
ThermaL Relay Application:
1.This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-96A for protecting the phase break when the electric motor is overload
2.The relay has different mechanism and temperature compensation & can be plugged in KLCI-D series AC contactor
3.It is the most advanced thermal relay in the nineties in the world
ThermaL Relay Characteristice:
1.Fundamental parameter of the main circuit
(1)Rated insulation voltage 660V
(2)Rated working current 25, 36, 93A separately
(3)The regulator seal of rated setting current and setting
2.Auxiliary circuit
(1)There is one pair of NO/and N/C contact with electric insulation
(2)Rated insulation voltage 500V
(3)Rated frequency 50-60Hz
(4)Use group, rated working voltage, appoint thermal current and rated current.

Detailed Photos
Product Parameters
SPECIFICATION:

Type	Rated working current of thermal relay		Thermal component
			Rated current(A)	Rated or scale of rated current (A)
LR2-D13	25	LR2-D1301	0.2	0.10-0.16
		LR2-D1302	0.3	0.16-0.25
		LR2-D1303	0.4	0.25-0.40
		LR2-D1304	0.6	0.40-0.63
		LR2-D1305	1.0	0.63-1.0
		LR2-D1306	1.6	1.0-1.6
		LR2-D13X6	2.0	1.25-2.0
		LR2-D1307	2.5	1.6-2.5
		LR2-D1308	4.0	2.5-4.0
		LR2-D1310	6.0	4.0-6.0
		LR2-D1312	8.0	5.5-8.0
		LR2-D1314	10.0	7.0-10.0
		LR2-D1316	13.0	9.0-13.0
		LR2-D1321	18.0	12.0-18.0
		LR2-D1322	25.0	17.0-25.0
LR2-D23	36	LR2-D2353	32.0	23.0-32.0
		LR2-D2355	36.0	28.0-36.0

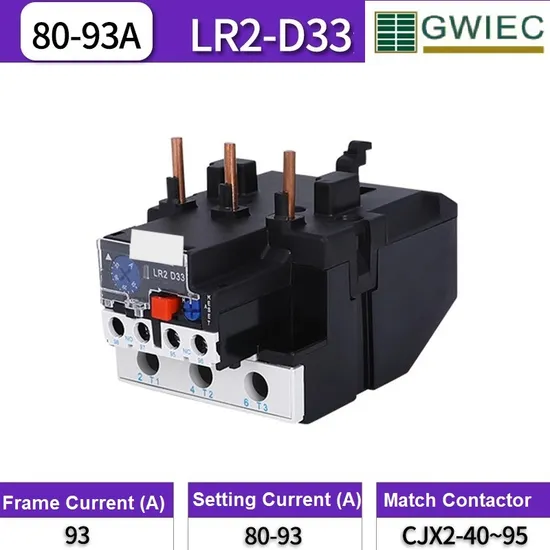

LR2-D33	93	LR2-D3353	32.0	23.0-32.0
		LR2-D3355	40.0	30.0-40.0
		LR2-D3357	50.0	37.0-50.0
		LR2-D3359	65.0	48.0-65.0
		LR2-D3361	70.0	55.0-70.0
		LR2-D3363	90.0	63.0-80.0
		LR2-D3365	93.0	80.0-93.0
