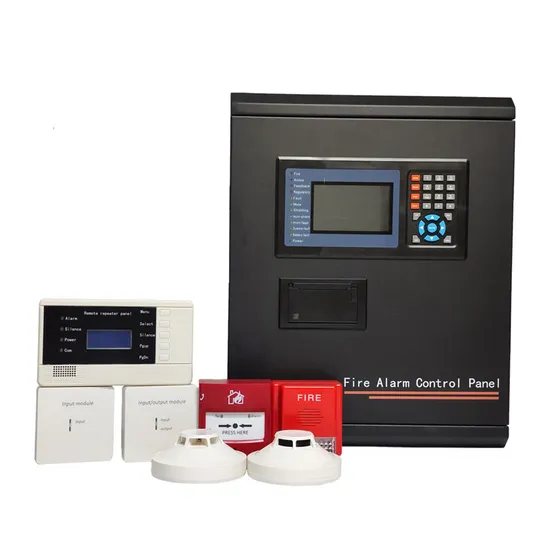

Wall Mounted 2 Wire Addressable Control Module Fire Alarm System

Product Description

2 Wire Control Module For Addressable Fire Safety Smoke Alarm System

Introduction

A control module, also known as an output module, is a device used in addressable fire alarm systems to control and activate various output devices and auxiliary systems.
The key functions and features of a control module include:

Output Control:
The control module is connected to output devices such as:
Audible alarms (horns, bells, speakers)
Visual alarms (strobe lights)
Relay-controlled devices (elevators, HVAC systems, door hold-open devices)
It provides the ability to turn these outputs on and off as required by the fire alarm system.
Activation Signal Transmission:
When the fire alarm control panel needs to activate a specific output, it sends a signal to the corresponding control module.
The control module then energizes the connected output device, initiating the desired action (e.g., sounding an alarm, closing a fire door).
Addressability:
Like other addressable devices, each control module has a unique digital address recognized by the fire alarm control panel.
This allows the control panel to precisely identify and control the specific outputs that need to be activated during an emergency.
Supervised Monitoring:
Control modules typically monitor the connected outputs for proper operation and fault conditions, such as open circuits or short circuits.
This supervisory monitoring helps ensure the reliability and integrity of the fire alarm system's output devices.
Integration with Other Systems:
Control modules can be used to interface the fire alarm system with other building systems, such as HVAC controls, elevator recall, and access control systems.
This integration enables a coordinated emergency response and helps ensure the safety of building occupants.
The use of addressable control modules provides several benefits, including improved system diagnostics, more precise control of output devices, and enhanced integration with other building systems. They are a crucial component in modern, sophisticated fire alarm systems.
Parameters

Product name	Input&Output Module	Type	Addressable
Loop Bus wired	2-wire Non-polarized	Monitor Current	≤350uA
Alarm Currrent	≤2mA	Dimension	Φ85*40 mm
Work voltage	DC17V~DC33V	Operating Environment	Temperature -10°C~+50°C Humidity ≤95%.
Weight	Weight:60g(with base)	Contact Capacity	DC24V/2A,Normal Open

Connection between Input Module




Connection Diagram of Fire Alarm System




Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
