Heavy Duty Drilling Machine Z5140b (Vertical Drilling Machine Price)
| US$4,000.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5140B
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE
Condition
New
Max Drilling Dia (mm)
40
Max Tapping Dia (mm)
M30
Spindle Taper (mm)
Mt4
Transport Package
Wood Case
Specification
CE SGS ISO9001 ROHS
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Product Description

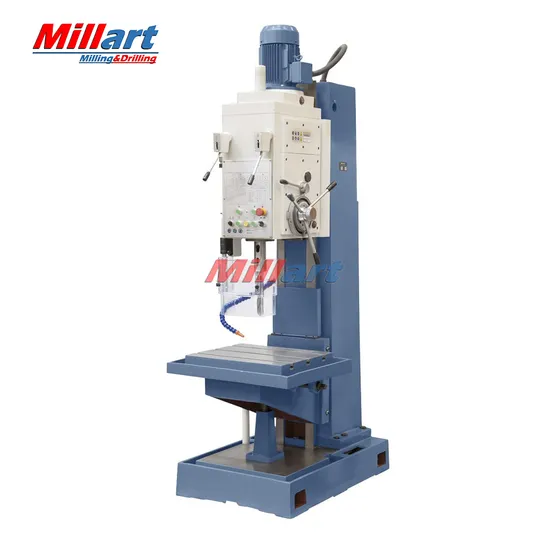

Heavy Duty Drilling Machine Z5140B (Vertical Drilling Machine Price )Feature:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
Model Z5140B-1 with cross table, can move on X and Y axis.
Technical Parameter :
| Model | Z5140B | Z5140B-1 |
| Max drilling dia (mm) | 40 | 40 |
| Max tapping dia (mm) | M30 | M30 |
| Spindle torque (Nm) | 350 | 350 |
| Spindle taper (mm) | MT4 | MT4 |
| Spindle travel (mm) | 250 | 250 |
| Spindle box travel by manual (mm) | 200 | 200 |
| Spindle speed steps (mm) | 12 | 12 |
| Spindle speed range (mm) | 31.5-1400 | 31.5-1400 |
| Spindle feed steps (mm) | 9 | 9 |
| Table size spindle feed range (mm) | 0.056-1.80 | 0.056-1.80 |
| Table size (mm) | 560x480 | 800x320 |
| Table longitudinal and cross travel (mm) | / | 440/300 |
| Table vertical travel (mm) | 300 | 300 |
| Max distance from spindle to table (mm) | 750 | 550 |
| Distance from spindle to column(mm) | 335 | 335 |
| Main motor power (kw) | 3 | 3 |
| Overall size (mm) | 1090x905x2465 | 1300x1200x2465 |
| Net Weight (kg) | 1250 | 1350 |
