Tube Diameter 8-51mm Making Machine Manufacture/Stainless Steel Pipe Tube Mill
| US$100,000.00-200,000.00 | 1 Set (MOQ) |
Basic Info.
Pipe Material
Carbon Steel
Condition
New
Customized
Customized
Theory
Pulse
Application
Industry
Type
Pipe Welding Machine
Voltage
220/380/415/420/440V
Pipe Diameter
21.3-76mm
Thickness
1.0mm-4.0mm
Level of Automation
Full-Automatic, Semi-Automatic
Weight
According to Actual Machines
The Width of Steel Strip
78-250mm
Key Word
Welded Tube Mill Line
Dimension(L*W*H)
Depends
Color
Optional
Certification
ISO9001 CE
Usage
Making Pipes Used
Pipe Shape
Round, Squrae, Oval, Recangle, etc
Transport Package
Moulds: Packing in Wooden Case
Trademark
sinoform
Origin
Yangzhou China
HS Code
8515219100
Production Capacity
50sets
Product Description

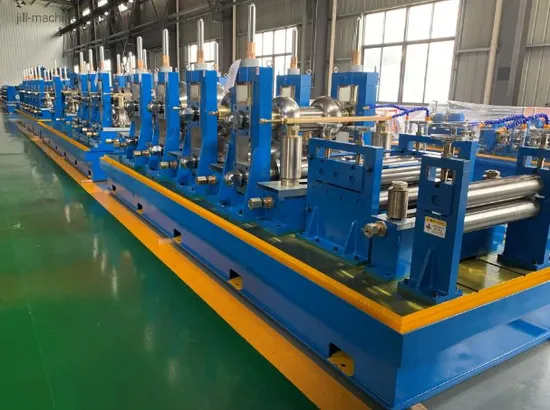

Tube diameter 8-51mm making machine manufacture/stainless steel pipe tube millALL Size Parameter details
| Model | Diameter of welded pipe(mm) | Wall thickness of welded pipe(mm) | Speed of machine(m/min) | Power of main motor(k/w) | High-frequency power(kw) |
| HG16 | 8-25 | 0.25-1.0 | 30-100 | 30 | 60 |
| HG25 | 8-32 | 0.35-1.3 | 30-100 | 45 | 100 |
| HG32 | 13-50.8 | 0.5-2.0 | 30-90 | 110 | 150 |
| HG50 | 20-63.5 | 0.6-2.5 | 30-90 | 160 | 200 |
| HG60 | 25-63.5 | 0.8-3.0 | 20-80 | 185 | 250 |
| HG76 | 25-80 | 1.2-4.0 | 20-70 | 200 | 300 |
| HG90 | 32-90 | 1.5-4.5 | 20-60 | 110*2 | 400 |
| HG115 | 38-115 | 2.0-5.0 | 20-60 | 160*2 | 400 |
| HG165 | 80-165 | 2.0-6.0 | 15-50 | 200*2 | 500 |
| HG219 | 90-219 | 3.0-8.0 | 15-50 | 250*2 | 600 |
| HG273 | 165-355 | 4.0-10.0 | 15-40 | 250*1 /185*2 | 800 |
| HG300 | 165-355 | 4.0-12.0 | 15-30 | 250*2/200*2 | 1200 |
Our parterners
Certificate display
Exhibition display
Packing &shipping
FAQ
1. Are you manufacturer or trading company?
We are manufacturer with 30 years experience , Which is located in the base place of this industry Yangzhou city Jiangsu Province ,China .
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
4. How long is the warranty period of your machine?
1 year .
