Automotive Industry Wooden Case Industrial Laser Robot Welding Equipment Machine

Product Description

Product Description
Robot Welding Workstation 1. The manipulator does not need a laser signal module, and the direct IO signal communicates with the welding machine handshake;
2. There are 64 sets of welding process waveforms, which are stored and recalled for welding requirements of different parts of the product;
3. The welding machine integrates functions such as laser control, swing welding head, wire feeding, and air pressure detection;
4. Realize offline multi-document welding processing to avoid incorrect welding caused by computer card machine;
5. Multi-signal closed-loop transmission of laser, laser control unit and manipulator, safe and reliable

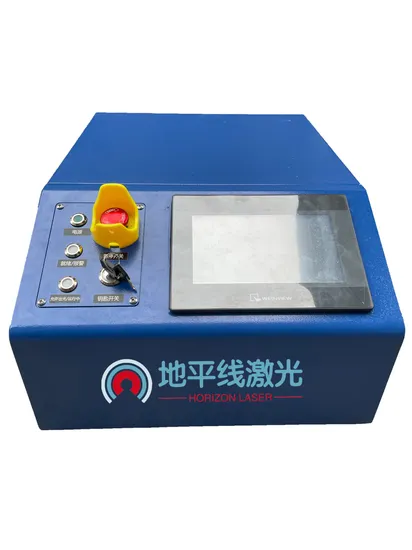

Robot aser welding module Horizon Laser Robot laser welding module,integrated welding system, power module, IO module, monitoring module in one design. It can control the laser,manipulator,swing welding head,wire feeder and other welding supporting components at the same time.There are 64 sets of welding process parameter groups, which can be called manually and automatically, and can adjust the effect of the head and tail weld bead,weld width,wire feeding parameters,etc. The manipulator laser welding module is plug and play,without secondary electrical integration,and can form a welding workstation with a manipulator and an automated production line.It can be applied to the welding production of new energy lithium batteries, automobile manufacturing, high-end cabinets and other industries.
Six core advantages
Detailed Photos
Appication

Product Parameters

Laser	Continuous Fiber Laser
Laser power	1000-6000W
manipulator	6 axis (multi-brand optional)
Welding head	Conventional welding head, galvanometer type swing welding head (weld seam 0.2 ~ 5 mm )
Process waveform	64 groups ( IO port call)
Waveform function	Laser power, pulse width, start and end arc control, swing length, swing type, wire feed
Load-bearing load	8-20kg (specification optional)
Processing radius	500-2000mm (Specifications are optional)
Targeting	Red light indication + CCD vision

Our Advantages

Certifications
After Sales Service
1. 7*24 hour
2. Response time<12 hours
3.Online support
4.Product replacement
5. Customer field service
6. Backup products during repairing for long time cooperators
* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have after sales support?
A: Yes,we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
I am not sure if this machine suitable for my work? A: Don't worry,just tell me your welding materia and welding thickness,then i will recommend you the most suitable machine for you.
