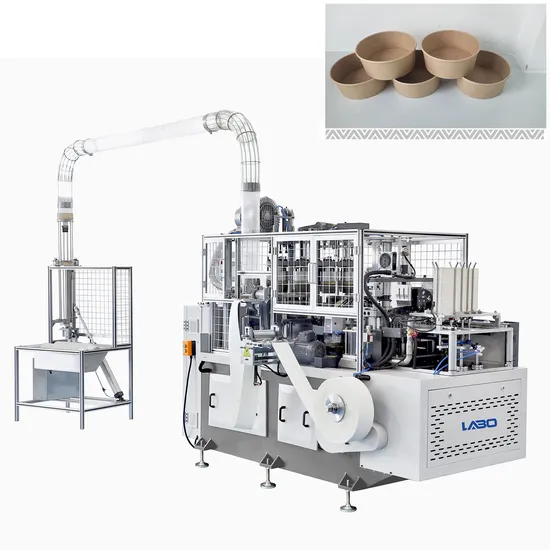

Disposable Ultrasonic Sealing High Speed Paper Cup Bowl Forming Making Machine

Product Description

Introduction:
Disposable Ultrasonic Sealing High Speed Paper Cup Bowl Forming Making Machine for Sale has advantage of high performance high efficiency and high-quality; The overall steel plate body and the oil-spaying lubrication system ensure the long-term normal and stable operation of the equipment.
Energy efficient:
The advanced high-precision cam drive and gear drive make the forming of each station accurate; the servo tracking bottom feeding paper locks the size of the cup bottom paper, effectively saving raw materials;
Humanize:
The human-machine interface PLC system controls the stable operation of the whole machine for a long time; the automatic counting and reasonable setting of the cup collection table can replace the busy work of manual work;
Product Made from Machine:
Main Technical Parameters:

Model	LB-W100
Speed	80-105pcs/min
Suitable Paper Weight	160-300g/m2;±20/m²
Cup Size	Bottom:(75-115mm), Top:(90-140mm), High:(50-110mm)
Power Supply	220V/380V 50Hz
Total Power	6KW
Gas Source	0.4-0.6Mpa; 0.4m3/min
Machine Weight	3800KGS
Overall Dimension ((L*W*H))	Main Machine: 2600X1600X1800mm
	Cup Collection System: 900X600X1500mm
Cup Side Sealing	Evergeen Ultrasonic
Bottom Knurling	Hot Air System

Machine Detailed Pic for Reference:
Packing and Loading of Container:
