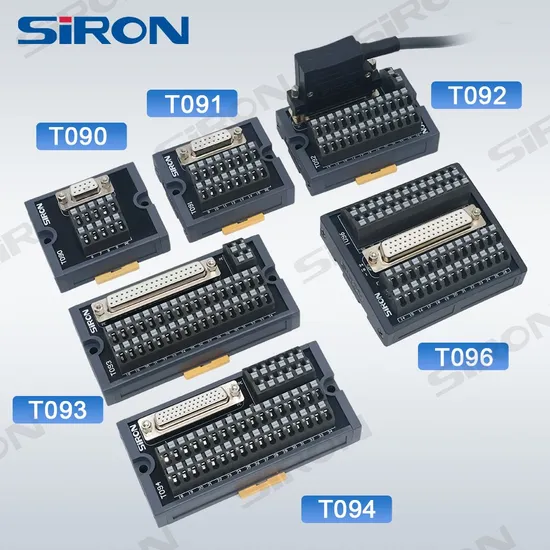

Siron T094 D-SUB Female Head 44-Pin Panel Mount Connector Terminal Block
| US$28.09 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T094
Connection Mode
In-Line Connector
Shape
Rectangle
Contact Termination Form
D-SUB
Interface Type
AC/DC
Brand
Siron
Nominal Operating Current
1A
Nominal Coil Voltage
DC 24V
Suitable Wire
1mm2 Fllowing /AWG17
Strip Length
6mm
Screw Mounting
Use M4*16 Screw,Screw Hole Depth≥3mm.
DIN Rail Mounting
Standard 35mm DIN Rail
Certificate
CE RoHS
Output
Double Layer Spring Type Terminal Block
Input
44 P D-SUB Socket Head
Name
44 P Terminal Block
Transport Package
Box Packaging
Specification
Mini
Origin
China, Hubei
Production Capacity
10000/Month
Packaging & Delivery
Package Size
25.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.500kg
Product Description
Features *T094 utilizes a 44pinD-SUB connector;All of them can be applied to the board and the signal line port of servodrive; No soldering is required,Connect the corresponding pins correctly; Saves time and can prevent wrong wiring connections; Output ports is the metaldome type that makes wiring conventional and quick.
PE is the plug shell that is connectedto the ground leading to this terminal convenient for ground wire.
*Notes: Before ordering,please confirm the PLC pin definition,choose the suitable terminal.
When PLC connection,please be sure to use the company developed and the corr esponding special cable. Screw Mounting:use M4*16 screw,screw hole depth≥3mm. DIN RailMounting:Standard 35mm DIN RAIL. Specifications
| Input | Nominal operating current | 1A |
| Nominal coil voltage | DC 24V | |
| Corresponding output Devices | Unlimited to PLC | |
| Suitable Wire | 1mm² Following / AWG17 Strip length:6mm | |
| Suitable Cable | X230-5 For details, please refer to the directory cable series | |
| Suitable PLC | Suitable for various CNC systems D-SUB plugs, Positioning module, communication module and PLC module | |
