High Precision Hydraulic Flat Price Surface Grinding Equipment My1230

Product Description

Product Description

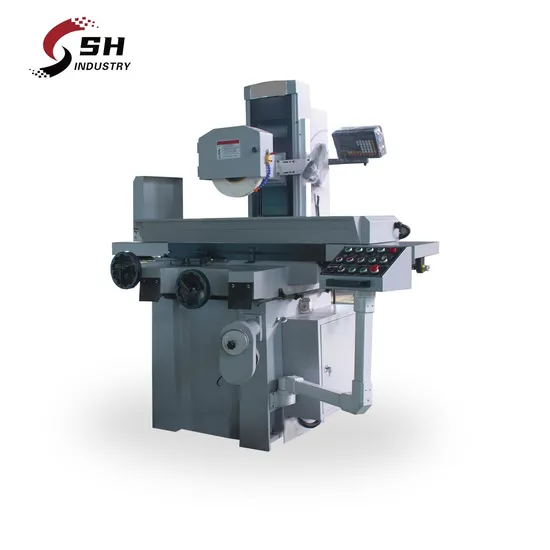

High Precision Hydraulic Flat Price Surface Grinding Equipment MY1230
Product Parameters
The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Main technical specifications	Specifications				Units	MY1022	MY1224	MY1230
	workbench	Worktable size (L * W)			mm	540×250	600×300	750×300
		Max. travel of table			mm	560×260	630×320	780×320
		Table T slot (slot number x slot width)			mm	1×14	1×14	1×14
	Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	φ200×20×φ31.75	φ300×30×φ76.2	φ300×30×φ76.2
		Distance spindle center line to working table			mm	450	520	520
		Grinding wheel speed		50HZ	r/min	2850	1450	1450
				60HZ	r/min	3360	1680	1680
	The amount of feed	Table longitudinal (left and right) speed			m/min	3-20	3-20	3-20
		Table transverse (front and rear) feed handwheel feed		Continuous (stepless)	mm/min	600	600	600
				Intermittent (stepless)	mm/times	0-5	0-6	0-6
				Handwheel per turn	mm	4	4	4
				Handwheel per lattice	mm	0.02	0.02	0.02
		The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	1.25	2	2
				Handwheel per lattice	mm	0.01	0.01	0.01
	Hydraulic system	Hydraulic motor			kw	1.5	360	360
		working pressure			Mpa	3	2.2	2.2
		Fuel tank capacity			L	80	4	4
		Maximum flow rate			L/min	18	100	100
	Motor power	Spindle motor			kw	1.5	20	20
		Cooling motor			W	40	2.2	2.2
	working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005	40	40
		Surface roughness			μm	Ra0.32	120	120
	Machine weight		Net weight		kg	950	1400	1400
			Gross weight		kg	1050	1530	1530
	External size (L * w * h)				mm	1680x1220x1720	1400	1400
	Packing size (L * w * h)				mm	1730x1290x1940	1530	1530

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
