20GP Container Type CNC Stone Cutting Machine with Advanced Diamond Wire Saw

Product Description

Function
:
The 20GP Container Type CNC Stone Cutting Machine with Advanced Diamond Wire Saw is designed specifically for processing the intricate profiles of marble and granite. It excels not only in crafting arc slabs of various specifications but also in producing solid and hollow columns, large stone lines, and English letters. Additionally, it can transform stone into polygons and intricate Buddha figures.
,
special-shaped square columns, and a variety of other unique stone shapes.
Brief introduction of SHXJ1500 wire saw machine:
1. The machine boasts a robust structure, encompassing a top beam
,
two upright columns
,
a square box
,
and a hydraulic station tensioning unit
,
among other components. The left side features a driven large flywheel and the hydraulic station tensioning unit, which controls the diamond wire's tension or looseness to maintain optimal pressure. The right side includes a driving flywheel and the main motor, which can regulate the wire speed from 0-40m/s through an inverter, enabling the machine to cut various types of stone material.
2. This machine's operations are managed by a sophisticated four-axis linkage CNC system. Both the machine's lifting and the trolley's movement are controlled via a servo system. The guide wheel's rotation is managed through a step system.
3. Operators can easily program and enter cutting parameters through the CNC control panel. For intricate designs, graphics can be drawn using AutoCAD, saved in DXF format, and then read by the CNC system, which automatically generates the program when a USB drive with the DXF files is inserted.
4. The trolley is maneuvered by a screw rod, which is lubricated with oil within the protective cover of the screw rod
(
a patented feature
)
.
5. In case of wire breakage, the machine will automatically halt and display the fault on the screen.
6. The machine includes a water spray system; if there is insufficient water or no water at all
,
the machine will stop automatically.
Technical parameters:

Parameters	SHXJ1500(five axis)
Diameter of Wire	Φ8-Φ11
Length of Wire	16500mm
Speed of Wire	0-40m/s
Worktable Size	3000×2000mm
Worktable Whether Revolve	YES
Worktable Load Capacity	50T
Range of Cutter Movement	1600mm
Max Cutting Size(L×W×H)	3000×2000×1500mm
Production Efficiency	1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	7500×5700×4300mm
Diameter of Guide Wheel	Φ200mm
Total Power	21.79KW
Total Weight	10T

Schematic Drawing:
Electric Cabinet & Operation Panel Photos:

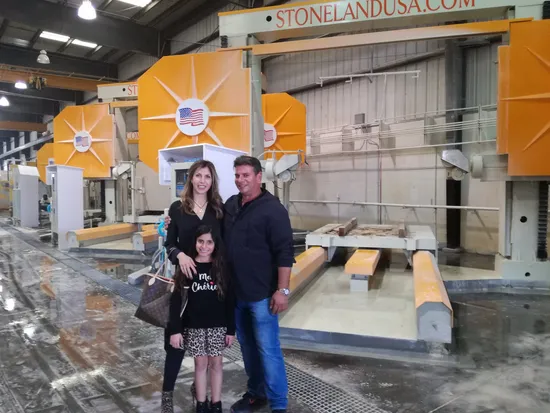

Exhibition:
