Metal / Iron / Color Steel Ibr / Corrugated Roofing / Wall / Tile Sheet Cold Roll Forming Making Machine

Product Description

Product Description

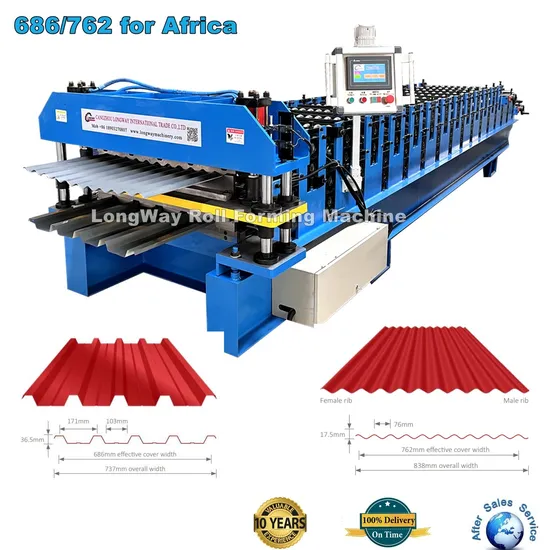

The Full hard G550 Material Ibr Roof Sheet Corrugated Iron Roofing Zinc Sheet Making Machine produces two different profiles named IBR roof panel or 686 roof sheet , corrugated roof sheet profile. It has following features.
High-Quality Output: Produces durable, high-quality PV8 and microwave Aluzinc steel roofing sheets for superior performance.
CE Certification: Complies with European standards, ensuring safety, reliability, and international market acceptance.
Double-Layer Design: Enhances strength and versatility, suitable for different roofing profile designs.
Precision and Efficiency: Advanced roll-forming technology ensures precise, efficient production with consistent results.
Long-Lasting Performance: Designed for durability, offering weather resistance and low maintenance for extended use.
Detailed Photos
Capacity:10 tons
Coil inner diameter:450-550mm
Feeding width: max 1250mm
Function: Supporting the coils and doing uncoiling, It adopts the hydraulic cylinder to make the decoiler expand and fit to the inner diameter of coils. It is equipped with the cantilever. Motor drives the coils running and can do forward and reverse running as well as do the decoiling with tension.
Aanti condensation device
An anti-condensation device is a specialized equipment designed to prevent the formation of condensation on surfaces, particularly in environments where temperature differentials can lead to moisture buildup.

Adopt guiding rollers and sliding block to control the width and position of the steel sheet.
Manual Pre-cutter to cut the sheet in advance.

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

A. Adopts post cutting, the cutting blade material is Cr12 with quenched treatment, after cutting, there is no material wasted.
B. Adopts 4 pillar type for good rigidity.
C. The cutting action is drove by hydraulic pump which guarantees the procession of the cutting and faster speed.
Computer has two modes: automatic and manual one. The target length and pcs can be setting on it. Friendly HMI is easy to operate and use
PLC:Delta, Siemens for option
Auto Stacker has 6M/8M/12M for option
Collect the finished sheets automatically, save labor, and very efficiency.
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1000/1200/1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		15-19 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		9.8m×1.5m×1.2m
Total weight (Approx)		9.6T

Installation Instructions
Applications of Full hard G550 Material Ibr Roof Sheet Corrugated Iron Roofing Zinc Sheet Making Machine
This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.
A minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.

Packaging & Shipping

Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
wSpraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
