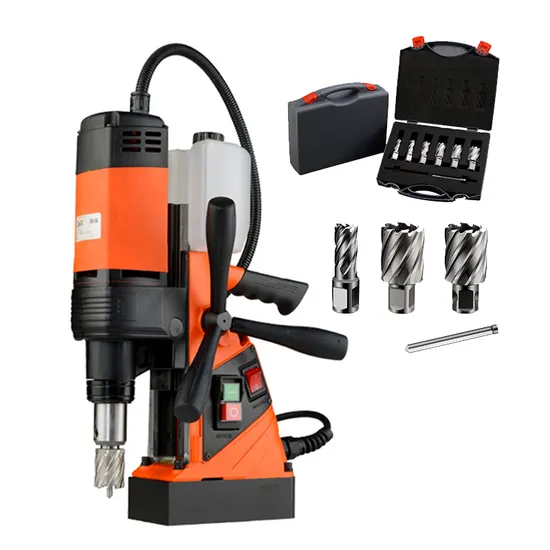

Dx-35 Drilling Machine for Metal Drilling

Product Description

Product Type	DX-35
Motor rated power	1100W
Load speed	450rpm
Tool holder	19.05mm (3/4")
Magnetic adhesion	10000N
The max cutter capacity	35mm (1-3/8")
The max cutting depth	50mm (2")
The max diameter of twist drill	13mm
The min cutter depth	10mm
Stroke	120mm
Motor can adjust the height to	95mm
Magnetic drill machine dimension	275*190*400mm
Magnetic base size	167*84*44mm
Total weight	15.4kg
Countersunk drilling	10-35mm
