ISO Automatic Jwc Transparent Film for Baby Diaper Price Machine
| US$500,000.00-1,200,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JWC-NK450-HB
Product Object
Baby
Designed Speed
500PCS/Min
Production Speed
300-400PCS/Min
Computer Control Panel
Yes
Product Specification
S, M, L, XL
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
Ivory White
Machine Direction
to Be Defined
Machine Power Source
380V/50Hz
Process
Baby Diaper Machine
Usage
98%
Type
Baby Diaper Machine
Processing Technology
Laminated Machine
Effciency
90%
After-Sales Service Provided
Video Technical Support
Service Provided
Field Maintenance and Repair Service
Transport Package
Transparent Film for Baby Diaper Machine
Specification
S, M, L, XL
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Sets
Product Description
JWC-NK450-HB High Speed Excellent Economic Full Auto Baby Diaper Making MachineProduct Description
This Full Servo Full Elastic Waistband Baby Diaper Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This Full Servo Full Elastic Waistband Baby Diaper production Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100% full automatic control.

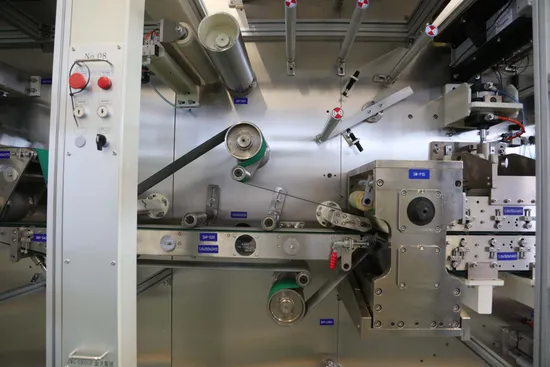

| 1.Machine frame Reasonably solid square steel frame 2. Crusher system 3. Fluff forming system 4. SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue 8. ADL feeding, roll diameter φ800mm 9. Fluff core inner cut device 1 set ,adopt frame type structure, increase the cutter life, 10. Leak cuff unit 11. Hydrophilic nonwoven supply, roll diameterφ800mm 12. Magic tape material supply 13. Three pieces complex, two sides fixing unit, adhesion pressing 14. Bottom film supply | 15. Frontal tape supply 16.Inner waist non woven unwinding 17.Wait elastic supply 18. outer waist nonwoven unwinding 19. Elastic waistband forming unit 20. Products Arc cutting unit 21. Pressing unit (Y shape roller) 22. Product vertical tri-fold 23. Pressing unit(Y shape roller) 24. Transmission unit 25. 1 set final cut unit 26. Horizontal fold transmission unit 27. Horizontal fold unit 28. Product transmission unit 29. Auto rejection exit (pneumatic) 30. Horizontal stacker transmission 32.products turn into 90 degree horizontal direction 33. Duel auto rejection exits |
| 1 | Design speed | 500pcs/min |
| 2 | Working speed | 300-400pcs/min |
| 3 | Qualified rate | ≥ 97% (exclude the wastage due to the glue applicators and materials splicing joint) |
| 4 | Efficiency | ≥ 85% |
| 5 | installation capacity | ≥210KW |
| 7 | Electricity | 380V ±5%,50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³ |
| 9 | Air pressure | ≥0.8Mpa 2.6m³/min |
| 10 | Total weight | About 60 tons |
| 11 | Machine size | 26.5×8×5 M(L×W×H) |
| 12 | Working space | 34×12×8 M (L×W×H) |
| 13 | Machine color | Rice white ,can be changed by order |
| 14 | Product size | S,M,L,XL |
| 15 | Containers | 6X40HQ |
| Nordson/NDC/HES Glue Applicators Reasonable glue spray position reservation, glue tube go through from the hole on the top of machine into back transmission cabinet, then straightly come out from machine board | Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen | Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility |
| Name | Brand | Origin | |
| 1 | Servo motor | Mitsubishi | Japan |
| 2 | Auto web guider | FIFE | USA |
| 3 | Touchable screen | Banner | USA |
| 4 | PLC controlling system | Mitsubishi | Japan |
| 5 | Sensor | Banner | USA |
| 6 | Safety production | Shneider | France |
| 8 | Cutter raw material | D2/M7 | USA |
| 9 | Gear according to usage | BEM/NSK/SKF | Germany/Japan/Sweden |
| 10 | Timing belt | Optibelt or Gates | Germany/USA |
| 11 | Low voltage electronic | Shneider | France |
| 13 | Temperature controlling system | Omron | Japan |
| 15 | Pressure regulating valve | Airtac | Chinese Taiwan |
| 16 | Pneumatic element | Airtac | Chinese Taiwan |
| 17 | Solenoid valve | Airtac | Chinese Taiwan |
| 18 | Moisture separator | Airtac | Chinese Taiwan |
| 19 | Automatic fault alarm | Mitsubishi | Japan |
