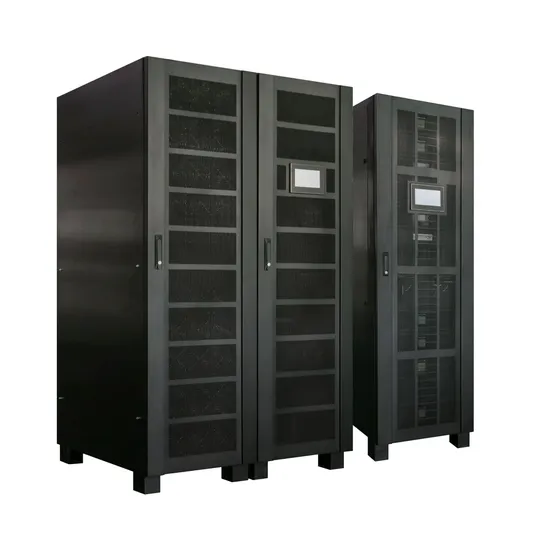

High Frequncy Backup 380VAC 3in/3out Modular Online industrial UPS

Product Description

Product Description
Modular UPS factory Supplier Online UPS with < 3% Input THD
Model: Modular Online UPS Power Melody Star Series (3ph in/3ph out)

Modular UPS Quick View
1: Modular UPS Built-in Static Switch
2: Superior energy saving and environment-friendly
3: UPS with Intelligent module and system protection design
4: Independent charger for batteries, intelligent battery management system.
Key Features
1:< 3% Input THD
2:From 20 to 200kVA
3:0.8 / 0.9 output Power Factor
4:Up to 10 modules per cubicle
5:Unity input Power Factor (0.99)
6:10, 15, 20kVA modules available
7:>95% Double conversion Efficiency
8:High instantaneous overload capacity
9:Provide large LCD touch screen (optional)
10:IGBT rectifier and high input power factor (>0.99)
12:LED Mimic Panel Showing Current Flow and Status
13:Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety at limit conditions
14:Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
Easy Operation and Installation:
RM series offers a high installation flexibility that reduces installation time. Consequently, it is very easy to maintain and to control each module which provides highest reliability and best protection for supplied load. With the large touch screen LCD panel, the user can easily access to the information of every power module.

Smart Battery Management:
Each UPS module is built with a separate 3.2kW charger. With 10 installed modules, the total charging power will equal to 32kW. This charger is controlled by a DSP with intelligent digital arithmetic that enhance battery lifetime.

Smart Protection System:
All the power modules and systems are protected simultaneously by the hardware and the software. All kinds of protection functions are achieved, including current and voltage monitoring, temperature monitoring and short circuit etc . This smart monitoring enhance reliability and availability as the operator is able to anticipate potential problems prior these occur.

MS Series 10K-200Kva
Capacity	10-200KVA
Main Input
Input voltage	380V/400V/415V(line to line)
Input frequency	50/60Hz
Power factor	> 0.99
Input cuurent THD(Total Harmonic Distortion)	< 3%
Input voltage window	-40%~+25%
Frequency window	40-70HZ
Battery
Battery voltage	± 240VDC
Charger power	20%*Power
Charger voltage precision	1%
Bypass
Bypass voltage	380V/400V/415V, three phase
Bypass voltage window	-20%-+15%, full load, settable
Bypass overload capabiltiy	150%, long time operation
	180%, shut down after 10 minutes
	> 180%, shut down after 200ms
Output
Output voltage	380V/400V/415V, three phase
Voltage precision	± 0.5% (balance load), ± 1% (unbalance load)
Voltage THD(Total Harmonic Distortion)	THD< 1%(linear load), THD< 3%(nonlinear load)
Power factor	0.8
Phase tolerance	120° ± 0.5° (balance and unalance load)
Crest factor	3: 1
Overload capabiltiy	110%, transfer to bypass after 1hour
	125%, transfer to bypass after 10 minutes
	150%, transfer to bypass after 1 minute
	> 150%, transfer to bypass after 200ms
System
System efficiency	Normal mode: 95%
	ECO mode: 99%
Battery mode efficiency	95%
Display	LCD+LED, Touch screen and keyboard
IP class	IP20
Interface (Communication Ports )	RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface
Installation/Connection	Top or bottom cable connection
Operation temperature	0-40C
Storage temperature	-25~70C
Relative humidity	0-95% (non-comdensing)
Noise(dB)	< 55dB
Weight(KG)	6-module cabinet	150KG
	10-module cabinet	180KG
	Module	10KVA: 20KG
		15KVA: 21KG
		20KVA: 22KG
Dimension(W*D*H)(mm)	6-module cabinet	600*900*1600
	10-module cabinet	600*900*2000
	Module	400*600*133 (10KVA/15KVA/20KVA)

Detailed Photos
