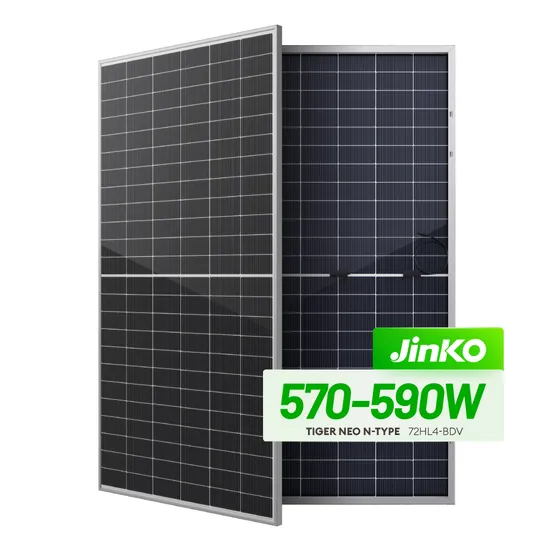

Jinko Outdoor Photovoltaic Solar Panel N Type 580W 700watts 550W 720W PV Module for House Power Price
Basic Info.
Model NO.
Tiger Neo N-type 72HL4-BDV 570-590
Number of Cells
144(2*72)Cells
Application
Residencial,Commercial & Industry
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Cell Type
N Type Mono-Crystalline
Weight
31 Kg
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TUV 1*4.0mm2 (+): 400mm , (-): 200mm or Customized
Packaging Configuration
36PCS/Pallets, 72PCS/Stack, 720PCS/ 40′hq Containe
Front Glass
2.0mm, Anti-Reflection Coating
Back Glass
2.0mm, Heat Strengthened Glass
Transport Package
Box with Pallets
Specification
2278*1134*30mm
Trademark
Jinko solar
Origin
China
Production Capacity
5000000000 Watts/Year
Product Description
Product DescriptionSpecification| Module Type: JKMxxxN-72HL4-BDV | 570 | 575 | 580 | 585 | 590 |
| Maximum Power (Pmax/w) | 570 | 575 | 580 | 585 | 590 |
| Maximum Power Voltage (Vmp/V) | 43.58 | 43.73 | 43.88 | 44.02 | 44.17 |
| Maximum Power Current (Imp/A) | 13.08 | 13.15 | 13.22 | 13.29 | 13.36 |
| Open-circuit Voltage (Voc/V) | 52.10 | 52.30 | 52.50 | 52.70 | 52.90 |
| Short-circuit Current (Isc/A) | 13.83 | 13.89 | 13.95 | 14.01 | 14.07 |
| Module Efficiency STC (%) | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 |
| Operating Temperature(°C ) | -40°C~+85°C | ||||
| Maximum system voltage | 1500VDC (IEC) | ||||
| Maximum series fuse rating | 30A | ||||
| Power tolerance | 0~+3% | ||||
| Temperature coefficients of Pmax | -0.29%/°C | ||||
| Temperature coefficients of Voc | -0.25%/°C | ||||
| Temperature coefficients of Isc | 0.045%/°C | ||||
| Refer. Bifacial Factor | 80±5% | ||||
615~635W BifacialTiger Neo N-Type 78HL4-BDV
Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 34kgModules per box: 36pcsModules per 40' container: 576pcs615~635W Mono-Facial
Tiger Neo N-type 78HL4-(V)Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 29.5kgModules per box: 36pcsModules per 40' container: 576pcs600~625W Bifacial
Tiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W Bifacial
Tiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W Mono-Facial
Tiger Neo N type 72HL4-BDVCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs535~555W Bifacial
Tiger Pro 72HC-BDVP BifacialCells Layout: 144 Half CellsDimensions: 2278x1134x30mmWeight: 31kgModules per box: 36pcsModules per 40' container: 720pcs550~570W Mono-Facial
Tiger Pro 72HCCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs470~490W Mono-Facial
Tiger Neo N-type 60HL4-(V)Cells Layout: 120 Half Cells(6x20)Dimensions: 1906x1134x30mmWeight: 22.5kgModules per box: 36pcsModules per 40' container: 864pcs425~455W Mono-Facial
Tiger Neo N-type 54HL4R-(V)Cells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcs420~440W All Black
Tiger Neo N-type 54HL4R-BCells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcsPictures & Package
