Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable

Product Description

Product Description https://xsdsingder.en.made-in-china.com/product-list-1.html
UL2468 Flat Ribbon Cable PVC Insulated Cable UL Listed Twin Cable Twin Wire Flat Cable Electric Wire PVC Insulation UL2468 Flat Cable Awm
-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance, computer, IDC connector, mainframe, speaker, lighting, electronics, wiring harness, etc.

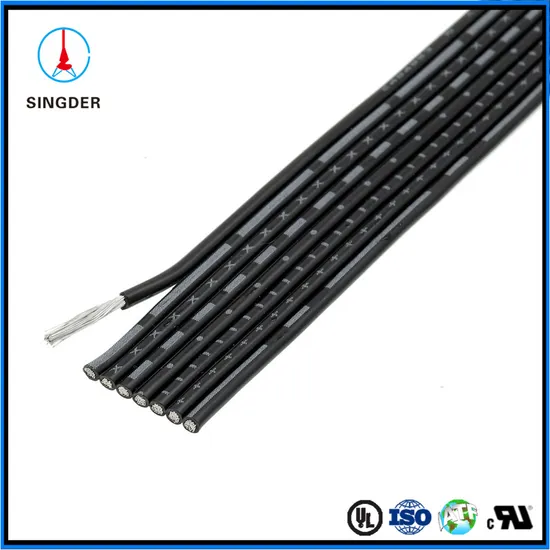

Detailed Photos
Product Parameters

Conductor				Insulation		Max. Cond. Resistance at 20°C (Ω/km)
No. of Cores	AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)
2	28	7/0.127	0.38	0.43	1.24X2.58	239
2	26	7/0.16	0.48	0.43	1.34X2.78	150
2	24	7/0.2	0.60	0.43	1.45X3.04	94.2
2	22	7/0.254	0.76	0.43	1.62x3.34	59.4
2	20	26/0.16	0.94	0.43	1.80X3.70	36.7
2	18	41/0.16	1.18	0.43	2.04X4.23	23.2
3	28	7/0.127	0.38	0.43	1.24X3.92	239
3	26	7/0.16	0.48	0.43	1.34X4.22	150
3	24	7/0.2	0.60	0.43	1.45X4.63	94.2
3	22	7/0.254	0.76	0.43	1.62X5.06	59.4
4	28	7/0.127	0.38	0.43	1.24X5.26	239
4	26	7/0.16	0.48	0.43	1.34X5.66	150
4	24	7/0.2	0.60	0.43	1.45X6.22	94.2
4	22	7/0.254	0.76	0.43	1.62X6.78	59.4
5	28	7/0.127	0.38	0.43	1.24X6.60	239
5	26	7/0.16	0.48	0.43	1.34X7.10	150
5	24	7/0.2	0.60	0.43	1.45X7.81	94.2
5	22	7/0.254	0.76	0.43	1.62X8.50	59.4
6	28	7/0.127	0.38	0.43	1.24X7.94	239
6	26	7/0.16	0.48	0.43	1.34X8.54	150
6	24	7/0.2	0.60	0.43	1.45X9.40	94.2
6	22	7/0.254	0.76	0.43	1.62X10.22	59.4
7	28	7/0.127	0.38	0.43	1.24X9.28	239
7	26	7/0.16	0.48	0.43	1.34X10.0	150
7	24	7/0.2	0.60	0.43	1.45X11.00	94.2
7	22	7/0.254	0.76	0.43	1.62X11.94	59.4
The above datasheet is for reference only, please refer to the final specification.

UL AWM Listing

SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1061	1330	1333	1569	10070	10362	11627
1013	1180	1331	1430	1571	10183	10368
1015	1185	1332	1431	1589	10269	10702
Multiple-conductor, thermoplastic insulation.
2464	2517	2648	2678	2835	20276	21370
2468	2547	2651	2725	20080	21016	21513
2570	2586	2587
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386	3656
3196	3271	3302	3385	3619
Multiple-conductor, thermoset insulation.
4478

DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1015	1061	1430	1569	10070	10269	11627
1013	1032	1185	1431	1571	10183	10368
Multiple-conductor, thermoplastic insulation.
2464	2517	2570	2587	2725	20276
2468	2547	2586	2651	2835
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386
3196	3271	3302	3385	3656
