20 Auto Tool Changer CNC Machining Center
| US$15,500.00-29,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UA-2063
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New

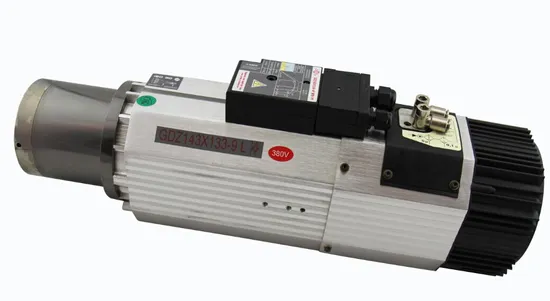

Spindle
9kw /12 Kw/ Italy
Controller
Taiwan Syntec
Rail
Taiwan Linear Rail
Rack
Helical Rack
Table
Double Layer Vacuum Table
Motor
Servo Motor
Inverter
Delta
Vacuum Pump
7.5kw Air Cooling Pump*2 Sets
Software
Type 3 / Artcam
Reducer
Taiwan Planetary Reducer
Transport Package
Plywood Box
Specification
heavy duty type machine
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
600 Sets/Year
Product Description
3D CNC Autotool Changer Woodworking Machinespecification
| UA Series | UA-48 | UA-510 | UA-2063 |
| Table Area | 1220×2440mm | 1525×3050mm | 2000×6300mm |
| Traveling Area | 1320×2540×300mm | 1625×3150×300mm | 2100×6400×300mm |
| Traveling Speed | 80m/min | 80m/min | 80m/min |
| Working Speed | 20m/min | 20m/min | 20m/min |
| Spindle Power | 9.0kw/12KW | 9.0kw/12KW | 9.0kw/12KW |
| Spindle Speed | 24000r/min | 24000r/min | 24000r/min |
| Working Voltage | AC380V/3PH/50HZ | AC380V/3PH/50HZ | AC380V/3PH/50HZ |
| Driving System | Yaskawa / Siemens | Yaskawa / Siemens | Yaskawa / Siemens |
| Controller | Syntec / Siemens /OSAI | Syntec / Siemens /OSAI | Syntec / Siemens /OSAI |
| Positioning Mode | Pop-up positioning pin | Pop-up positioning pin | Pop-up positioning pin |
| Table Structure | Vacuum | Vacuum | Vacuum |
| Tool Magazine | Linear / Carousel | Linear / Carousel | Linear / Carousel |
| Optional | Automatic loading & unloading system / Safety protection guard / Drilling / Double station/ B Axis / | ||
| C Axis / Aggregate head / Vacuum cup / Partition table / Vacuum pump / Hold-down device, etc | |||
