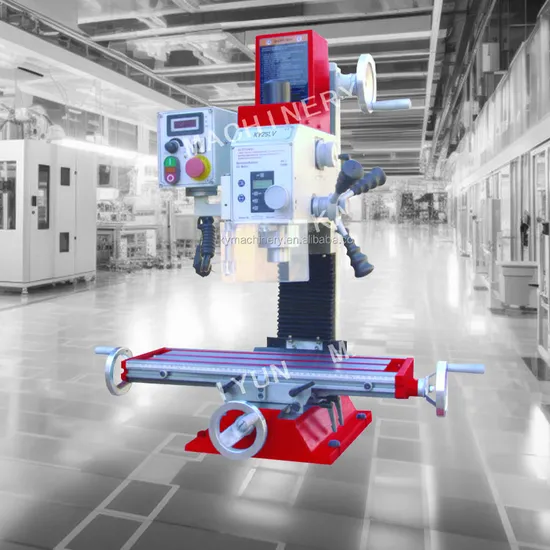

Mini Drill Mill Lathe Ky25V/Ky25LV Universal Milling Machine with Ce
| US$696.00-789.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY25V/KY25LV
Controlling Mode
Artificial
Number of Shaft
3
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
Red
Spindle Taper
Mt2
Motor
750W
Drilling Capacity
25mm
Sleeve Travel
50mm
Face Milling Capacity
63mm
Warranty
1 Year
End Milling Capacity
20mm
Y-Axis Travel
175mm
Z-Axis Travel
380mm
Transport Package
Wooden Case
Specification
KY25V/KY25LV
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
Features1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
| Specification | ||
| Model No. | KY25V | KY25LV |
| Drilling capacity | 25mm | 25mm |
| Face milling capacity | 63mm | 63mm |
| End milling capacity | 20mm | 20mm |
| Spindle taper | MT2 | MT2 |
| Sleeve travel | 50mm | 50mm |
| Low speed stage | 50-1125 rpm | 50-1125 rpm |
| High speed stage | 100-2250 rpm | 100-2250 rpm |
| Head rotation | ±90° | ±90° |
| Table size | 500x180 mm | 700x180 mm |
| X-axis travel | 280mm | 480mm |
| Y-axis travel | 175mm | 175mm |
| Z-axis travel | 380mm | 380mm |
| T-slot | 12mm | 12mm |
| Load of table | 55kg | 55kg |
| Motor | 750w | 750w |
| Packing size | 670x550x860mm | 870x550x860mm |
| Net weight | 103kg | 115kg |
| Standard Accessories | ||
| Speed display | 1 set | |
| Depth ruler | 1 set | |
| Working lamp | 1 set | |
| Drill chuck 3-16mm | 1 set | |
| Arbor MT2/B16, M10 | 1 set | |
| Drawbar MT2/M10 | 1 set | |
| Operation tools | 1 set | |
| Optional Accessories | ||
| Stand & chip tray | ||
| Keyless drill chuck 3-16mm | ||
| ER32/6pcs collet chuck (6-20mm) | ||
| 3-way angle vise/75mm | ||
| Milling vise | ||
| End mill 7pcs (4-16mm) | ||
| 58pcs of clamping kits/M10*11.7mm | ||
| X-axis Power feed | ||
| Digital readout | ||
