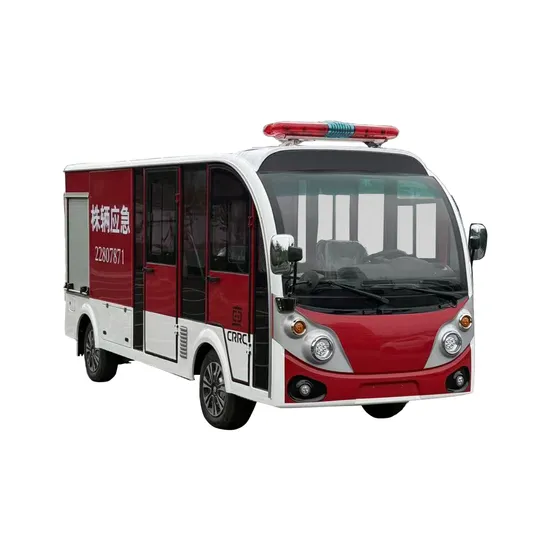

2 Small Electric Fire Rescue Vehicles in Residential Communities

Product Description

Product Parameters

2 electric fire trucks (1-ton water tank) - Legendary model
Electrical system	Controller	High power AC controller
	Battery	Maintenance free battery 8V/piece, 9 pieces
	Motor	Efficient copper winding AC 72V/7.5KW motor
	Charger	Computer intelligent charger, input voltage 220V/180V, output 72V, 25A
	Charging time	Less than 10 hours (discharge rate of 80%)
Vehicle configuration	Front gear	Laminated glass
	Seat	Leather fabric
	rearview mirror	One manual external rearview mirror on each side
	Top roof	Automotive professional environmental protection and thermal insulation aluminum-plastic panel
	Floor	Aluminum alloy patterned anti slip floor
	Steering system	Bidirectional gear rack steering system, automatic clearance compensation function, electronic directional power assist
	DC, Lighting and Signal	72V/12V-400W front lighting, turn signal, rear taillight, horn, reverse buzzer, fire special alarm light, fire loudspeaker
	Body	Automotive Process Sheet Metal Body
	Frame	Shot blasting rust removal, phosphating acid washing, cathodic electrophoresis, spraying automotive topcoat
	Instrument panel	Injection molding vehicle dashboard, voltmeter, electricity meter, instrument indicator light, electric lock switch, combination switch, speedometer.
	Brake system	Front disc rear hub four-wheel hydraulic brake+handbrake parking, hydraulic vacuum brake assist
	Front axle and suspension	Independent suspension, spiral spring+cylinder hydraulic shock absorber
	Rear axle and suspension	Integrated rear axle, cylinder hydraulic shock absorber
	Tire diameter	175R13
Technical Parameter	Size (mm)	4770*1610*2050
	Rated passenger (person)	2
	Maximum driving speed (km/h)	≤27km/h
	Driving range (km)	60-80 (flat road)
	Safe climbing slope	15%
	Minimum turning radius (m)	7.3m
	Ground clearance (unloaded/fully loaded) mm	140/130
	Wheelbase	2300 mm
	Track width	Front 1350mm/Rear 1290mm
	Braking distance (initial speed 20Km/h; No load/full load) M	3.1/5.0

On-board fire fighting equipment
Categories	Quantity
800L stainless steel tank	1
Water cannon	1
Fog Cannon Machine	1
4kg dry powder fire extinguisher	2
Fire hose (25m)	2 rolls
Fire shovel	1 handful
Fire axe	1
Fire hydrant wrench	1
Fire bucket	1
Dc switching water gun	A handful
Flowering water gun	1 set
Type 92 fire suit	1 set
Fire helmet	1
Fire belt	1
Fire stab-proof boots	1 pair
Fire pump	1

Product Description
Detailed Photos Equipped with a high-pressure water pump, this Water Tank Fire Fighting Truck Mini Fire Rescue Fighting Equipment Special Truck With Good Quality provides powerful force for firefighting purposes. Increase the capacity of the water tank to enhance convenience and usability. Our Water Tank Fire Fighting Truck, also known as a Mini Fire Rescue Fighting Equipment Special Truck With Good Quality, is designed to provide a comfortable driving experience with its soft leather seats.The carriage is equipped with high-quality roller shutter doors, making it more convenient to use. Wide range of application
Real PICS Certifications
After Sales Servicequality guarantee
1.Our company guarantees that the supplied vehicles are brand new, unused original qualified products, and ensure that the provided vehicles have good performance during their service life under normal maintenance conditions of correct installation and normal use.
2.Our company is committed to the quality standards of the supplied vehicles in accordance with the relevant national quality and technical standards and relevant laws and regulations and provisions of the implementation of the requirements, and not lower than the original manufacturer's quality assurance regulations and relevant supply standards for the supply of counterfeit and shoddy products.
after-sales service
1.Promise to provide permanent maintenance services, vehicle warranty for one year, after the warranty period to provide paid services.
2.Regular return visit maintenance: Telephone return visit every 3 months, timely understanding of the buyer's opinions and suggestions, in order to promote the company's after-sales service work to further improve.
After-sales proces
1.The customer provides product information, unit information and contact information by telephone or email message, and describes the cause of the problem to the manufacturer.
2.After receiving the information, the manufacturer will try to deal with it as soon as possible.
3.Provide a solution to the problem described by the customer until the customer is satisfied.
Company Profile
Workshop pictures
FAQQ1 Are you factory or trading company?
A:We are factory in Guizhou province,China,with more than 10 years of manufacturing experience
Q2 Do you support customized products?
A:We offer a wide range of customized products, which can be customized according to your requirements
Q3 How long is your production cycle?
A:Production cycle 30 days in peak season, 10-15 days in off-season
Q4 How about the trading term and payment term?
A:We can discuss this individually
