Sts DIN Rail Single Phase Prepaid Electricity Meter with Ciu
Basic Info.
Model NO.
DDSY395
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter, Sts Meter
Electric Equipment
Single-phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
ISO
Customized
Customized
Color
Gray
Transport Package
Carton Packing
Specification
5(80)A
Trademark
SANFRAN
Origin
China
HS Code
9028301300
Production Capacity
500000PCS/Month
Product Description

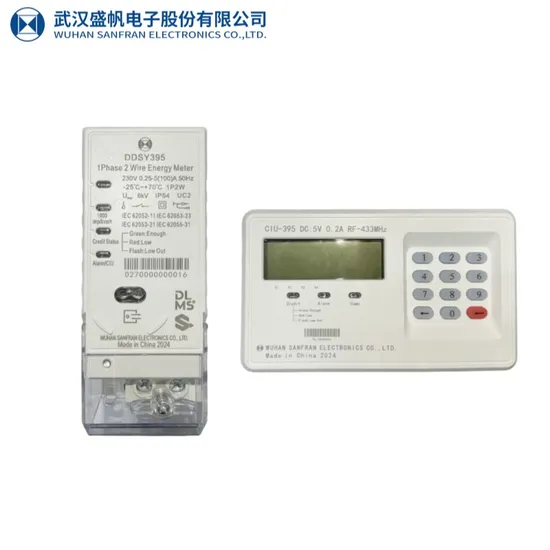

Single Phase Keypad Prepaid Energy MeterDDSY395 Single phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with SanfranPay vending software directly and communicate with AMI system via LORA-RF or PLC module. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:
| ★Meter recharge by inputting TOKEN | ★Utilities can set TOU price into meter on request |
| ★Ingress protection IP54 waterproof | ★Anti-tamper magnetic field protection |
| ★Up to 8 years battery life | ★MD(maximum demand measurement) |
| ★Remote connection/disconnection | ★Low credit alarm |
| ★Real-time clock | ★Overdraft collection |
| ★Check data by inputting the short code | ☆LORA-RF communication |
Specification:
| Electrical | Nominal Voltage | 230V |
| Working Voltage Range | 70%~120%Un | |
| Active Energy Constant | 1000imp/kWh | |
| Power Consumption in Voltage Circuit | <2W <8VA | |
| Power Consumption in Current Circuit | <1VA | |
| Operation Temperature Range | -25ºC-70ºC | |
| Storage Temperature Range | -40ºC-85ºC | |
| Electric Magnetic Compatibility | AC Insulation Strength | 4kV at 50Hz during 1min |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
| Electrostatic Discharges | Contact discharge 8kV | |
| Air discharge 16kV | ||
| Electromagnetic RF Field | 27MHz-500MHz 10V/m | |
| 100KHz-1GHz 30V/m | ||
| Fast transient burst test | 4kV | |
| Protection | Class II |
Parameters:
| Model | DDSY395 |
| Current(Imax) | 5(80)A |
| Accuracy class | 1.0 |
