Recycle Board Making Testliner Toilet Kraft Duplex Packing Machinery Paper Waste Machine

Product Description

Corrugated Paper/Kraft Paper/Testliner Paper/Fluting Paper/ Recycled Paper Making Machine
Products Description

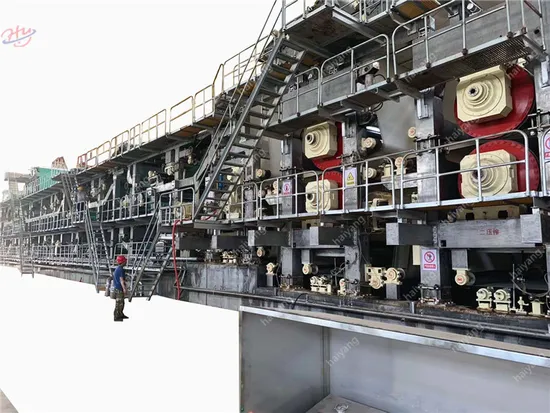

Kraft liner board machine use waste paper,white shavings ,virgin pulp as material to make high quality kraft paper board for paper mill. Finished products can be made paper roll.
China liner paper making machine , kraft paper mill 50 t/d for sale is newly improved in 2020 and has more stable performanc e and high speed. It best choice for paper recycling and carton box making line. The final product can be process into carton box. Net paper width is 2100mm, mainly used in the manufacture of high strength kraft paper. kraft paper machine is mainly divided into the following parts: the slurry box, the long web, the squeezing part, the former drying cadre, the slanting surface sizing machine, the post-bake cadre, the volume extraction department.
Main Equipments
1.Brief introduction:
Net paper width is 4800mm, is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.
2.Headbox:
Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.
3. Wire Section:
Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll,wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.
4. Press Section:
It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller,equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.
5. Front Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.
6. Beveled Surface Sizing Machine:
Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.
7. Back Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.
8. Reeling Section: Pneumatic horizontal reeling machine.
Flow chart
Raw material
Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Waste Paper Recycling Machine Kraft and Corrugated Paper Making Machine Paper Product Making Machinery Production Line
Description: Kraft and Corrugated Paper Making Machine is a production line that use waste books paper, wood pulp board, waste paper box, old corrugated carton, wheat straw pulp, wood etc. to produce Kraft paper,test liner paper, corrugated paper, fluting paper, cardboard paper.
Kraft and corrugated Paper Making Machine Is Mainly Used as The Package Material, High Strength, Brown Color. Full Bleached or The Half Bleached Kraf Paper Pulp Is Light Brown Color , Cream Color, or The White Color. Most Are Jumbo Rolls, Some Are Sheets. The Kraft Paper Is Generally Made Into The Cement Paper Bags, Envolope, and Cables Protective Paper. Good Quality Waste Carton Recycle Corrugated Paper Making Machine.
Technical Specifications

1. Raw Material:	Waste Paper, Wood Pulp, Carton Paper
2. Product Variety:	Kraft paper,corrugated paper
3. Paper Width:	2100mm
4. Quantitative:	80-300g / m2
5. Production Capacity:	50T/D(24hours)
6. Design Speed:	200m/ min
7. Working Speed:	120-200m / min
8. Rail Gauge:	3000mm
9. Transmission way:	AC variable frequency, section drive

Company Profile
Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements. The main series of the products are tissue paper machine; kraft paper/testliner /fluting paper machine;writing paper machine and special paper machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam,Egypt, Bangladesh,Malaysia,Pakistan,Iran and other countries.
Certificate
Our service
Pre-sale Service
--24 hours phone, email, trade manager online services;
--We will supply the detailed project report, detailed general drawing, detailed flow process design, detailed layout factory drawing for you until meet your requirement;
--we welcome you to come to our paper making machine factory and paper mill factory to have a look and check;
--We will tell you all the necessary cost when set up a paper mill factory;
--We will answer you all the questions within 24 hours;
--We will send you various quality paper samples made by our paper machine for free;
--We can supply turn key-project service.
On-purchase Service
--We will accompany you to check all the equipment made by us, and help you to make the plan of installation;
--We will supply paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram, formal installation drawing, use and installation instructions and a full set of technical data after signing the contract.
After-sales Service
--We will delivery the machine as soon as possible according to your requirement, within 50 days;
--We will send rich practiced experience engineers to you to install and test the machine and train your worker for free;
--We will give you one year guarantee time after the machine can run well;
--After one year, we can guide and help you to maintain the machines;
--Every 2 years, we can help to overhaul the complete machines for free;
--We will send you spare part in lower price. Packing & Delivery
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Installation
FAQ
1.What kind of paper machine your factory produce?
--Qinyang City Friends Machinery Equipment Co., Ltd.Our factory mainly produce flowing machine:
a. Kraft paper machine which can produce carton box paper, corrugated paper, craft paper, test liner paper, carton board paper etc.
b. Culture paper machine which can produce white paper jumbo roll, include A4, A3 paper, copy paper, printing paper, newspaper, offset paper etc.
c. Toilet Paper Machine which can produce toilet paper, tissue paper jumbo roll
d. paper processing machine. the jumbo roll paper can be processed all kinds of paper, such as , A4, A3paper, handkerchief paper, towel paper and kitchen using paper
2.Can you make paper mill design for us?
--yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality
--FRD is a mature brand in china, more than 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System, and can match all the CE standard or more strict standard. our paper machine is running well in more than 20 countries. we are gold supplier on ****** already 5 years.
4.What should I have to know if I want to get the quotation?
a. What kind of raw material you will use(main important)
b. The capacity you want produce per day(main important)
c. The paper weight you require.
d. The paper width you require.
5.Your machine price is high,is there any discount?
--We always provide high quality paper machines,we are paying more attention on oversea market,because of communication time after sales,and also it need very long time to send new parts.our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. our marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
6.Could your engineer can teach and train our workers and stay in our factory for long time?
--Yes, we have more than 100 technical installation engineer team, they can train and teach your worker to operate paper machine, but you should pay them salary.
This is Summer, manufacturer of paper machine with turn key service.We mainly produce all kinds of paper making machine. Please send inquiry to get more details.
