Truck/Large/Airplane Spray Paint Booth/Spray Booth/Paint Oven
| US$5,500.00-19,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CP-230505
Type
Spray Booth
Certification
CCC, CE, GS, SGS
Substrate
Sandwich Panel
Brand
Captain
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Inside Dimension
23000X5000X5000 mm(Lxwxh)
Outside Dimension
23150X6500X5500mm(Lxwxh)
Pit
2 Rows of Pits, 18000X760mm(Lxw)
Main Door
4-Folds, 4000X4500mm(Wxh)
Escape Door
2 Units, 800X2000 mm (Wxh)
Room Body
75mmeps Panel, 0.5 Steel
Lighting System
Ceiling Lights: 104PCS, Side Lights: 128PCS
Intake Fan
6X7.5kw Centrifugal Fans
Exhasuting Fan
3X11kw Centrifugal Fans
Heating System
3 Units Riello Rg5s Diesel Burners
Air Speed
0.3-0.35m/S
Ventilation Type
Semi Downdraft
Filter Type
Dry
Voltage
According to Need
Certificate
CE
Transport Package
Export Container /Pallet /Disassembly with Carton
Specification
CE, SGS
Trademark
OEM/Captain
Origin
Jiangsu, China.
HS Code
8424899990
Production Capacity
96sets/Month
Packaging & Delivery
Package Size
11000.00cm * 2350.00cm * 2600.00cm
Package Gross Weight
7980.000kg
Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
The large/industrial spray booth is customized size according to need.
| Outside Size(mm): | 23150×6500×5500mm(LxWxH) | |||
| Inside Size(mm): | 23000×5000×5000mm(LxWxH) | |||
| Front Door(mm): | 4000×4000mm(WxH), 1 Unit, galvanized steel cover frame, with polystyrene(EPS) inside | |||
| Service Door(mm): | 3 Units, 650×2000mm(W×H), There are two sets of pressure lock which will automatically open when the pressure inside is over the limit. | |||
| Total Power: | 86KW | |||
| Cabin System | Wallboard | Double construction with insulations EPS, thickness 75mm, 0.5mm steel thickness, width: 950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside. Profiled bar beams in the roof to strengthen the room body. | ||
| Basement | Need to build the base construction, 2 rows of pits in the ground for exhaust air, with galvanized grids made by twisted steel and flat bar above. | |||
| Inlet Fan(Belt) | Capacity: 18000m³/h each | Outlet Fan(Belt) | Capacity: 22500m³/h each | |
| Power: 5.5kw | Power: 7.5kw | |||
| Quantity: 8 sets | Quantity: 4 sets | |||
| Purification System | G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. | |||
| Heating System | Italy Riello RG5S diesel burner, 260000Kcal/h, 3 sets | |||
| Heating exchanger, stainless steel | ||||
| max temp: 80ºC, heating time: 8-10 min(from 20 to 60)by Drying Phase | ||||
| Lighting System | Ceiling Light: 26 Units, each 4×36W, with electronic ballasts; Side Light: 32 Units, each 2×36W, with electronic ballasts | |||
| Controlling System | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller. | |||
| Environmental System | G3 grade glass fiber floor filter, exhaust active carbon filter. | |||

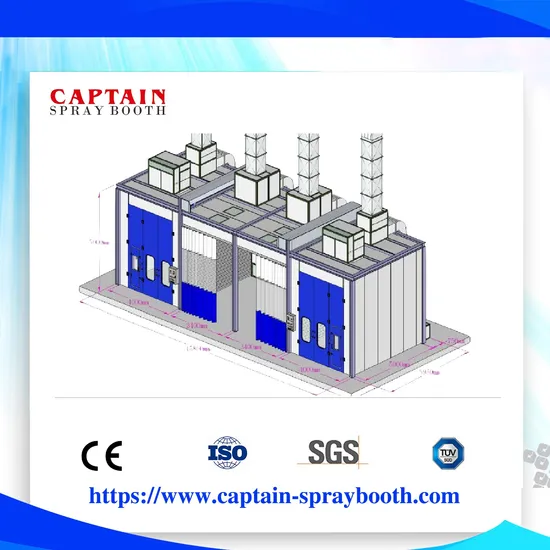

Design drawing for different size big booth:
Real photos for Truck/Train spray booth:
Real Photo for our airplane booth
Packages and delivery:
Our factory View
the same price higher quality, the same quality lower prices.
*2 years quality warranty!!!
*Fast and stable supply ability!!!
*Personalized design to meet customer various needs!!!
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
Over 14 years big spray booth factory;
Powder coating technology treatment;
Factory price and best quality;
OEM available.
