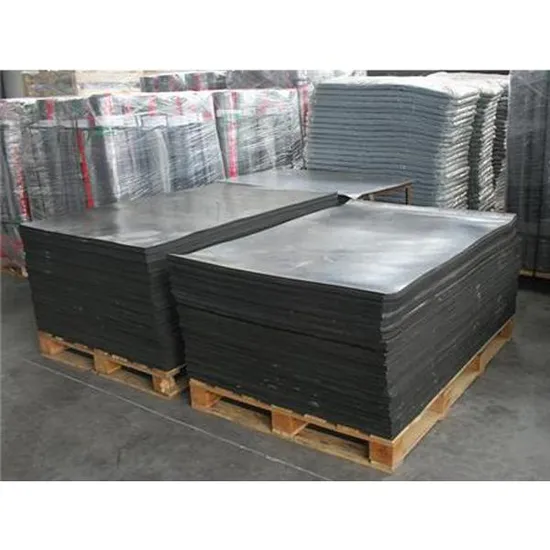

Natural Rubber Sheets/Rubber Seal Sheet

Product Description

ubber Sheet Type	*Industrial Rubber Sheet:sbr, nbr, cr, epdm,silicone, viton, natural,food grade,cloth insert *Snti-slip Rubber Sheet *Stall stable Rubber Sheet *Skirt Board Ruber Sheets
Physical Properties	Temperature:	-50° F to +200° F
	Ultimate Elongation (% Min):	300~350
	Tensile Strength:	3Mpa-13Mpa
	Durometer Hardness:	65 +/- 5 Shore A
	Color:	Black, white ,red or customed
Dimension	Wide:	1000mm-2000mm
	Length:	10m/15m/20m
	Thickness:	3mm-20mm
Application	Available for gaskets, seals, o-rings, washer.

The specification of the rubber mat.

Item	Hot Sale Rubber Sheets Competitive Price Stable Cow Matting
Material	EPDM, FKM, Silicon, Viton, NBR, SIL,Reclaimed Rubber, ETC.
Temperature	From -40°C To 100°C
Tolerance	From +/-0.01 mm To +/-3.05 mm
Hardness	From 25 shore A To 90 shore A
Certificate	ISO9001/TS16949/REACH
Size	As your drawing or as you customized
Thickness	As your drawing or as you customized
Color	Red, Green, Yellow, Blue, Black, Grey, Any color on your demand
Capacity	Strong supply ability
Payment	T/T, Western Union, PAYPAL, BANK TRANSFER etc

Silicone rubber sheeting

Apply to punch all kinds of seal gasket and other request.
Color: Transparent,Red,White, etc.
Specification: 1-6MMX2MX15M
Working in the air or oil medium at the temperature of -60~+200.
Application: With glossy finish, good aging resistant, ozone resistant, heat resistant, oil resistance and lube resistance,




Rubber
We supply all kinds of rubber sheet and rubber mat, please contact with us for more details:
Rubber Sheet:
Natural rubber sheet, SBR rubber sheet, NBR rubber sheet, Silicone rubber sheet, Neoprene rubber sheet, EPDM rubber sheet, Viton rubber sheet, Food grade rubber sheet, Cloth insert rubber sheet etc. Product Description EP waveform sidewall conveyor belt for sale
Feature:
Corrugated sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space requirement, no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.
Base Belt Structure:
Four parts: Top cover rubber; Bottom cover rubber;
Reinforced core; Cross rigid.
Thickness of top cover rubber: 3-6mm;
Thickness of bottom cover rubber: 1.5-4.5mm.
Belt core: Cotton, Nylon, EP or Steel Cord
The Width is the same as normal belt. The standard meets with GB/T7984-2001.
Cleat:
Cleat types: T, TS, C, TC and TCS
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"TS" and "TCS" cleat are normally used for abrasion condition
"T" and "TS" cleat are normally used up to 40 degree
"TC" and "TCS" are normally used from 40 degree to 90
(c) the level of :2-10
(d) plastic cover: Face :1.5-8 mm non-Face: 0 mm-4.5mm
Sidewall conveyer belt always work together with the wave-shape Apron transfardng system, normally the angle is more than 30o, it also could work together with the common use belt conveyor for [he horizontal and short distance transportation (No clapboard generally).
Sidewall conveyer belt uses the baseband, flange and diaphragm (it is not necessary in the horizontal transpodation) that the trough degree no greater than 0.03, and after twice suguration it could be made.
Sidewall conveyer belt using the technics of twice sulfuration compared to the similar products using the gluing process, has the advantages of high bonding degree and splendid flexibility, it could avoid the phenomenon of flange, clapboard cracking and fall off etc.
1. High efficiency
2. Stuff with large obliquities
3. Largest angle is ninety degree
4. Low maintain cost
5. Easy operation

Applying for large angle transporting,the maximum angle is 90 degree. Application: Applying for large angle transporting,the maximum angle is 90°. Characteristics: 1. To save time Because of large angle transporting,thus can be shortened the horizontal length and save the space of laying area. 2. Strong transporting capacity Compared with common conveyor belt,with large carrying cross section,has stronger transporting capacity than same width conveyor belt. 3. Without sidewall plate Because without sidewall plate,thus avoid the local abrasion. 4. Impossible to use small roller Impossible to use the traditional size of small roller. 5. Because the baseband uses special canvas core to improve the canvas,then improve the anti-broken ability of belt at the same time. 6. The sidewall plate and diaphragm are adhesive with baseband through heat vulcanization method,thus ensure the bonding strength. Baseband: Baseband is consisted of upper rubber,lower rubber,core and transverse rigid layer.Upper rubber thickness is 3-6mm,the lower rubber thickness is 1.5-4.5mm.The core supports tensile force,the core are:Cotton(CC),Nylon,EP.To improve the transverse rigid ability,it has added special reinforced layers in the core,named transverse rigid layer.Baseband has the same width with common belt. Cleat: The cleat is produced by fiber load materials.With large anti-shock ability and impact resistance,thus avoid the distortion of stress.The cleat has T,TS,C,TC,TCS five types.TS and TCS types are mosaic pattern.The conveyor angle is small than 40°,using T or TS cleat;the conveyor angle is bigger than 40°,using C,TC or TCS cleat. Corrugated sidewall plate: According to the carrying capacity,there are three types corrugated sidewall:Light type(N),Medium type(S),Heavy type(ES).

For more details,please inquiry us!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Steel Cord conveyor belt ( ST )
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Heat Resistance conveyor belt, (HR/ FR)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame,bracket etc.

The parameter relationship of the base belt width and flange height is as the following table(mm):

Bandwidth B of base	Block high H	Horizontal baffle high H1	The wave bottom wide B1	Effective bandwidth B2	Empty wide B3	Horizontal baffle form
300	40	35	25	180	35	TC
	60	55	50	120	40
	80	75
400	60	55	50	180	60	TC
	80	75
	100	90
500	80	75	50	250	75	TC
	100	90
	120	110
650	100	90	50	350	100	TC
	120	110
	160	140	75	300
800	120	110	50	460	120	TC
	160	140	75	410
	200	180
1000	160	140	75	550	150	TC
	200	180
	240	220
1200	160	140	75	690	180	TC
	200	180
	240	220
	300	260	100	640
1400	200	180	75	830	210	TC
	240	220
	300	260	100	780
	400	360
