Metal Processing Universal Vertical X6436 Drilling Milling Machine Swivel Head Milling

Product Description

Product Description
Vertical & Horizontal Milling Machine
X6436 universal rotary table milling machine is a general-purpose machine tool, mainly suitable for batch production, single-piece small batch production, mechanical processing departments, tools, and repair departments.
This milling machine can use cylindrical milling cutters, disc milling cutters, angle milling cutters, forming milling cutters and end milling cutters to process various planes, bevels, grooves, gears, etc. If you use universal milling heads, circular worktables, indexing heads and other milling machine accessories, you can expand the processing range of the machine tool.

Product Parameters

Specifications	Units	X6436
Table size(length × width)	mm	1600*360
Worktable travel	mm	1300*360*500
Vertical spindle		ISO40
Horizontal Spindle		ISO50
Number/Width/Distance of T-slot	mm	3-18-80
Distance between spindle axis and table surface	mm	150-550
Distance from horizontal axis center to table surface	mm	0-400
Vertical spindle speed	rpm	60-1800
Horizontal spindle speed	rpm	60-1750
Worktable longitudinal travel speed (X axis)	Mm/min	22-555
Worktable Transverse travel speed (Y axis)	Mm/min	22-555
Spindle rotation angle		360°
Ram travel	Mm	500
Spindle motor power	Kw	4
Feed motor power	Kw	1.1
Cooling motor	Kw	0.09
Overall dimension(L×W×H)	mm	2050*2000*2000
Weight	kg	2500

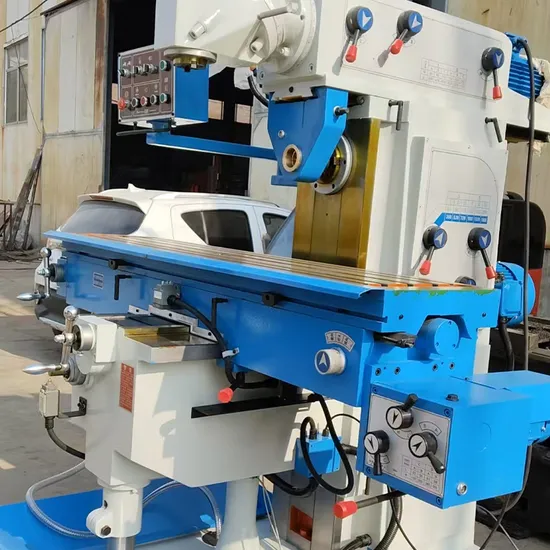

Detailed Photos
Machine features
1) This machine tool mainly comprises a bed, a lifting platform, a worktable, a main transmission, a main speed change, a lubrication system, a cooling system and other parts.
2) The machine tool has sufficient power and a wide speed range, which can give full play to the efficiency of the tool and can use carbide tools for high-speed cutting.
3) The machine tool worktable can realize manual and motorized feeding in the vertical and horizontal directions respectively. A feed box powers the vertical and horizontal motorized feeding, and there are 8 feed speeds and 1 fast feed speed for feeding. The main transmission adopts gear transmission, which has high efficiency, large torque transmission, large speed range and wide selection.
Our Advantages

Packaging & Shipping
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.

FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.
4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set
