Qh-1800 Two/Three/Five Ply Corrugated Cardboard Line for Fluting Paper Box

Product Description

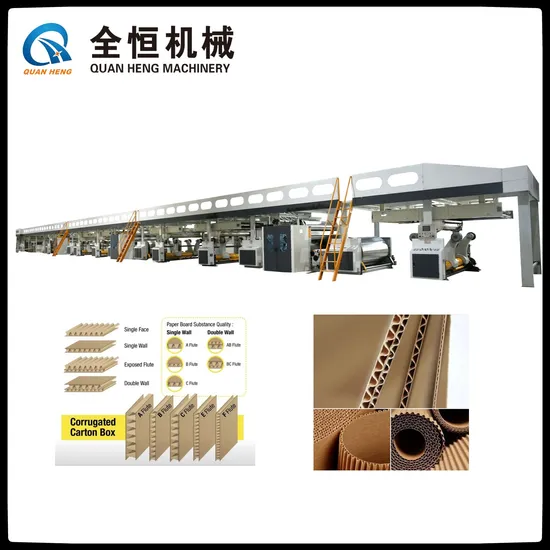

5 Ply Corrugated Paper Board Production Line
Product Description

1	Effective width		1800mm	2		Design produce speed	150m/min
3	Three layer work speed		100-140m/min	4		Five layer work speed	120m/min
5	Seven layer work speed		-------------------	6		The highest change single speed	---
7	Longitudinal separation accuracy		±1mm	8		Cross-cutting precision	±1mm
note	Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature.
	Top paper index	100g/m2--180g/m2 Ring crush index(N.m/g)≥8 (Water containing8-10%)
	Core paper index	80g/m2--160g/m2 Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
	In paper index	90g/m2--160g/m2 Ring crush index(N.m/g)≥6 (Water containing8-10%)
9	Flute combination
10	Steam requirement	The maximum pressure 16kg/cm2			Common pressure10-12kg/cm2			use4000kg/Hr
11	Electricity demand	AC380V 50Hz 3PH			Total power≈250KW			Running Power≈150KW
12	Compressed air	The maximum pressure 9kg/cm2			Common pressure4-8kg/cm2			use1m3/min
13	space	≈Lmin75m*Wmin12m*Hmin5m(The actual drawing to provider to provide audited prevail)

Detailed Photos Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck,multi-point brake,hydraulic drive lifting, panning left and right on the middle.Guide rail length 6000mm,use of plate welding.
Rail length6000mm,trolley used 10mm plate welding.
Corrugated main roller ¢320mm,material with 48CrMo alloy steel,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way.
Corrugated rollerφ320mm,48CrMo high quality alloy steel, tungsten carbide treatment
Fast change the roller in 15 minus by electrical trailer
Airbag ballast structure
Independent glue unit with PLC control,circulating supply glue
Man-machine interface display
Automatic stopping machine and relief pressure without paper
roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
Rack 360 mm GB channel,Chrome hot plate 600 mm *16 pieces,4 M cooling section,The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor.
--Blade adopt tungsten alloy steel
--Adjusting(blade and scorer) and grinding by computers
--Electric correct
--6 blade 10 line
--Automatic tracking of line speeds
--Changing order in8-15 seconds
--Fully servo motor and servo control
--Storage 200 sets orders
--Three different pressure line can be switched automatic
--Zero pressure line
Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
