Portable automatic car wash automatic tunnel carwash

Product Description

Portable automatic car wash automatic tunnel carwash
Our company
Qingdao Risense Mechatronics is a car wash equipment manufactuer with almost a decade of design and production experience. Our customers are primarily made of car wash service providers and we supply them with equipent like our car wash tunnel systems, rollover car wash systems, touchless car wash systems, soft-touch carwash systems and high pressure wash systems. Base on time tested technology from Japan and combined with the latest innovations in Europe and America, Risense offers complete and unique car washing systems.
The dedication to quality continues throughout the manufacturing process. We use a mature and stable numerical control processing technology to process all components, frames, motors and non-standard parts used in our car wash equipment.
Our workshop
The Risense factory includes 6 separate manufacturing workshops spanning a total area of 40,000 square meters. We utilize highly advanced and stable numerical control process technology to process and assemble all components, frames, motors, and non-standard parts for our car wash equipment.
Our certificate
Risense has obtained ISO9001 Quality System Certification, CE Quality Certification and ISO 14001 Environment Certification.
Our staff and exhibition:
As a car wash system manufacturer, we have nearly 10 years of production experience. To date, our vehicle cleaning systems have been sold in more than 100 countries including Russia, the United States, Canada, Singapore, Saudi Arabia, Pakistan, and Spain. If you are in search of a new vehicle cleaning system or are looking for an agency opportunity, you are welcome to contact us.
Product description:

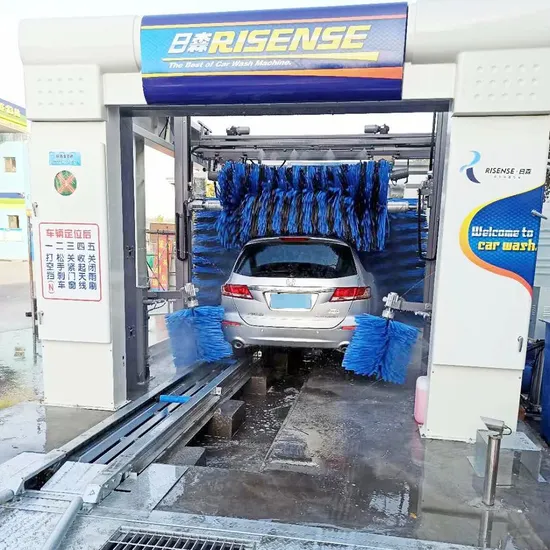

This tunnel car wash system features 9 brushes and will wash every side of the car while using less water and power. This car wash system improves washing efficiency, saves utilities and increases customer profits, making this conveyor car wash a popular system among our customers.
Parameters:

Model	CC-690
Dimension	L*W*H: 9.5m×3.8m×3.44m
	Conveyor 11.6 m (including car wheel guide devices)
Assembling Range	L*W: 11880mm×3800mm
Voltage	AC380V 50Hz (5 wire system)
Water Supply	DN25mm water flow rate≥200L/min
Air Pressure	0.75~0.9Mpa/ air flow rate≥0.1m³/min
Ground Flatness	Deviation≤10mm
Applicable Vehicles	Sedan/jeep/minibus within 10 seats
Applicable Car Dimension	L*W*H: 5.2m×2.15m×2.2m (wheelbase≤3.2m)
Washing Efficiency	55-60 cars/h
Small Vertical Brush	4
Large Vertical Brush	4
Overhead Brush	1
Water Consumption	95-140L/car
Power Consumption	0.6kwh/car
Shampoo Consumption	7ml/car
Water Wax Consumption	12ml/car

Advantages The galvanized frame of the tunnel car wash system is both solid and durable. The high pressure wash system improves the washing performance. The foam and water wax proportioning system is easy to use. Four groups of powerful dryers. The liquid automatic siphon is simple to operate. Multiple cleaning and long term washing completely washes the car, and ensures a superior washing performance. The PLC fully-automatic computer control system ensures a higher security. A one-click washing method is easy to operate. The contour-following drying system creates a better drying performance. The built-in self-diagnosing system will recognize and remove any mechanical obstacles during the washing process. Configerations:

Standard Devices	Optional Devices
Brush system	Undercarriage wash system
Hot dip galvanized frame	High-pressure water devices
Shampoo spray system
Water wax spray system
Contour-following drying system
Car entry guide rail apparatus
Equipment data intellectualization
Self-diagnose system

Details show:
Other products:
Besides tunnel car wash machine, we also manufacture the following products:
1. Rollover car wash machine
2. Bus truck wash machine
3. touchless car wash machine
4. Self-service wash machine
5. Vaccum cleaner
6. Wheel washer
Packing and delivery:
FAQ:
Q: Will we provide pre-sale services ?
A: Free product consultation is available and custom car wash solutions will be provided according to your preferences car wash machine type, daily passenger flow, venue size, etc.
Q: what is your cooperation modes?
A: There are two cooperation modes with Risense: agency and distribution. You can become an agent by purchasing more than 10 vehicle wash machines every year and as one of our distributors, you can enjoy a more favorable price.
Q: Do you provide construction drawings design?
A: Our engineers will provide customers with a car washing plant design and construction drawings on the basis of your location, environment and purchased equipment model.
Q: How about installation?
A: Our after-sales installation engineers will go to the site and offer customers free installation, testing, operational training and maintenance training.
Q: What after-sales service do you provide?
A: 1) Installation support. We can assign engineers to visit the site for installation.
2) English manuals and other documents are available for delivery.
3) Lifelong technical support; maintenance service for the complete service life.
4) Warranty: one year for the whole machine.
