Hot selling high output avocado olive coconut sunflower rapeseed mustard palm soybean peanut cotton seeds vegetable cold press oil machine screw oil expeller

Product Description

Hot selling high output avocado olive coconut sunflower rapeseed mustard palm soybean peanut cotton seeds vegetable cold press oil machine screw oil expeller
Product Description
Application:

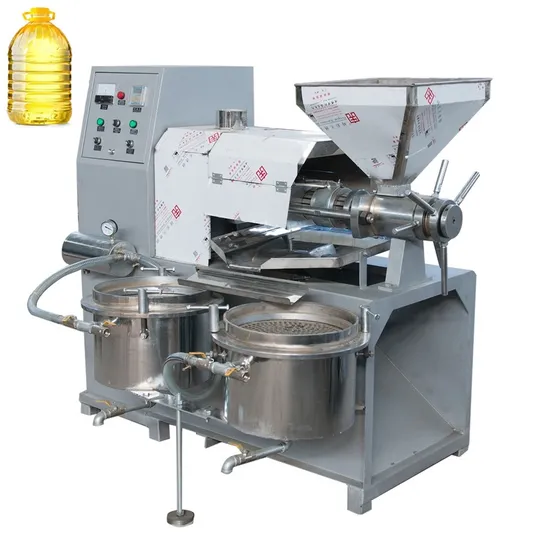

6YL-100T screw oil press machine with oil filter is a new type oil expeller produced to meet customers' requirement for raw oilseeds pressing both hot press and cold press.
The screw oil expeller is characterized by its reasonable structural design, advanced performance and features.
The integrated screw oil press machine is suitable for both direct pressing with pre-processing or not from oil crops such as rape seed, peanut, sunflower seed etc depends on oil seeds.
The screw oil press machine with oil filter is more advanced up to now with large throughput, high output rate, the finaly oil is pure without impurity and foam.
If its equipped with our automatic feeding machine could completely realize automatic production.
Advantage:
1.Simple and easy operation,one key to start without other operating
2.High oil yield to the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance
9.The vacuum filter system makes the oil quality better, the stainless steel filter tank is clean and sanitary
Technical data about the vegetable oil expeller:

Model		6YL-80T	6YL-100T	6YL-120T
Processing capacity		120-150kg/h	200-250kg/h	300-350kg/h
Pressing screw dia		Φ80mm	Φ100mm	Φ120mm
Pressing screw speed		60r/min	40r/min	36r/min
Round ring dia		Φ82mm	Φ102mm	Φ122mm
Power	Main power	Y112M-6 5.5KW	Y132M-6 7.5KW	Y160M-6 11KW
	Heating	3KW	3.5KW	4KW
Weight		780kg	980kg	1500kg
Size		1680x1300x1550mm	1950x1350x1610mm	2050x1550x1800mm

More picture and details about the screw oil press machine with oil filter
Intelligent control panel with temperature controller and voltmeter
Stainless steel feeding hopper,oil guide pan and cover are clean and sanitary
Press bar and heating unit for higher oil yield
Double vacuum filtering unit with 2 tanks:
Spare parts
Package pictures about oil pressers
Other screw oil press machine 6YL-160A
Our Factory
