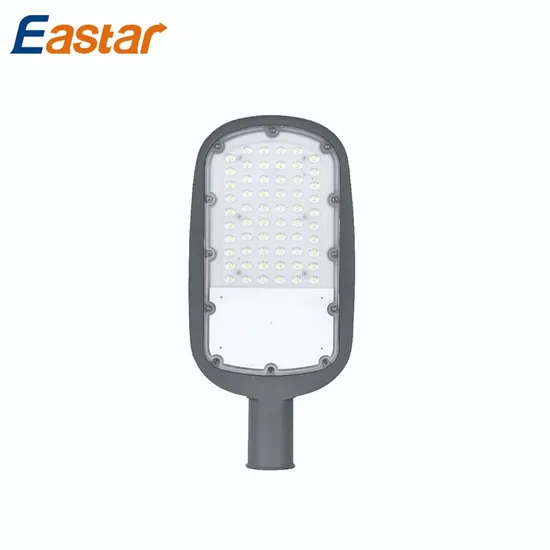

Outdoor Waterproof IP66 50W 100W 150W 200W Street Light
| US$10.00-30.00 | 1 Piece (MOQ) |
Basic Info.
Power
60-100W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP66
Certification
CCC, CE, CQC, EMC, Energy Star, FCC, FDA, LVD, RoHS, SAA, SASO
Input Voltage
100-240V
With Light Source
With Light Source
LED Chips Brand
Bridgelux
Transport Package
Carton
Specification
Exporting Standard
Trademark
EASTAR
Origin
Yangzhou City, Jiangsu Province
HS Code
9405409000
Production Capacity
10000PCS/Month
Product Description
Product DescriptionProduct Parameters of LED Street Light
| Rated Power | 50W | 100W | 150W | 200W |
| Chip Type | SMD3030 | SMD3030 | SMD3030 | SMD3030 |
| Chip Qyt | 60pcs | 120pcs | 150pcs | 200pcs |
| Luminous Efficiency | 150lm/W | |||
| Colour Temp. | 3000K/4000K/5000K/5700K/6500K, Optional | |||
| Beam Angle | TYPE II / TYPE III, Optional | |||
| Color Rendering Index | Ra>70 | |||
| Input Voltage | AC100~277V, 50~60Hz | |||
| Power Factor | >0.95 | |||
| Driver | MEANWELL, INVENTRONICS or others, according to customer's requirements | |||
| Options for Driver | Conventional/0-10V, optional; additional light controller can be installed | |||
| Matreial of Housing | ADC12 Die-cast aluminum lamp body + PC lens + 304 stainless steel screws | |||
| Protection Level | IP66/IK08 | |||
| Lightning Protection | 6KV or 10KV | |||
| Installation Diameter | Ф50mm | Ф60mm | Ф60mm | Ф60mm |
| Product Size | 420*200*70mm | 495*215*80mm | 540*215*80mm | 600*235*80mm |
| Warranty | 5 years | |||
