6-Wheel Drive Type 4 Cubic Meters Concrete Mixer Truck Portable Cement Mixer Factory Price

Product Description

Tri-Ring Special Transport Vehicle Ready-mixed Concrete Mixer Truck for Construction Sites Product Description

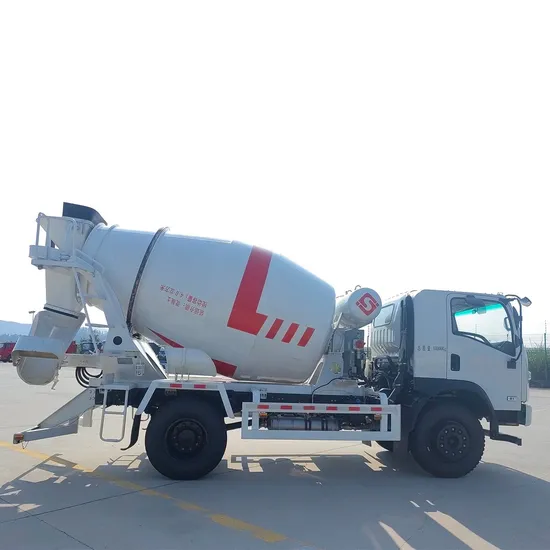

Concrete Mixer Truck
A concrete mixer truck, or ready-mixed concrete truck, is a special truck used to transport ready-mixed concrete for construction sites; due to its appearance, it is often called a snail truck.
The truck is equipped with a cylindrical mixing drum to carry the mixed concrete, which is kept rotating during transportation to ensure that the concrete does not solidify. After the concrete is transported, the inside of the mixing drum is usually rinsed with water to prevent the hardened concrete from taking up space.Product Parameters

Concrete Mixer Truck
Manufacturing Company Name			Hubei TRI-RING Automobile Co., Ltd.
Vehicle Model			STQ5188GJBN6 Concrete Mixer Truck
Basic Vehicle Parameters	Drive Type		4×2
	Total Mass (kg)		18000
	Curb Mass (kg)		8280
Vehicle Appearance Parameters	Length (mm)		7315
	Width (mm)		2400
	Height (mm)		3800
	Wheelbase (mm)		3600
Performance Parameters	Maximum Speed (km/h)		88
	Maximum Climbing Grade (°)		30%
Chassis Configuration Parameters	Engine	Engine Emission Standard	Euro II, III, IV, V, VI
		Manufacturer	Guangxi Yuchai Machinery Co., Ltd.
		Displacement (L)	4.2L
		Rated Power (Kw)	147
Chassis Configuration Parameters	Cab	Type	Single-Row Flat-Top Cab
		Model	T3 (1995) (1.995M Wide)
		Standard Configuration	Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Box, Multi-Function Steering Wheel
	Transmission	Gearbox Type	Manual, 8 Gears
	Front Axle	Type	Drum Brake
		Loadable Mass (kg)	3600
	Rear Axle	Type	Drum Brake
		Loadable Mass (kg)	10000
		Speed Ratio	4.875
Chassis Configuration Parameters	Frame	Cross-Sectional Dimensions (mm)	250×65×(6.5+5)
	Leaf Spring	Number Of Plates	9 Front Springs, 11+8 Rear Springs
	Tire	Type	Wire Tire
		Quantity	6
		Model	10.00R20-18
	Steering System	Type	Hydraulic Power Steering System
	Braking System	Brake Type	Drum Brake, With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Break
		Parking Control Type	Hand Brake Operation
	Electrical System	System Voltage	24V
		Battery	100AH Dual Battery
Top Configuration Parameters	Tank	Stirring Capacity (M³)	4
	Other Configurations	Rongjiao (Dark Blue) Reducer + SUNNY Oil Pump, Motor, Kaipeng\Zhenhua Radiator (Closed); Using National Standard Steel, Tank Head 8Mm, Cylinder (Front Cone 5Mm, Middle Cylinder 4Mm, Rear Cone Thickness 4Mm), Blade Thickness 3.5Mm. Material QSTE500, Tooling Splicing, Automatic Welding Of Circumferential Seams And Longitudinal Seams, Blade Mold Pressing, Forging Track, Flange; Using Double Logarithmic Spiral Curve Design, The Best Ratio Of Diversion Holes And Stirring Plates; Large Pitch Design, Feed Speed ≥4M³/Min, Discharge Speed ≥3M³/Min, Residual Rate ≤0.6%; Three Coats Of Paint (Including Primer, Sandblasting, Topcoat); Standard 400L Aluminum Alloy Water Tank (Including Aluminum Alloy Bracket), PVC Aluminum-Plastic Water Pipe With Fire Water Valve, Rear Three Outlet Pipes (Including Blade Flushing), 1.5Mm Iron Arc Wheel Guard Plate Aluminum Alloy Side Guardrail, Lightweight Standard Inlet And Outlet Hopper.
Other Configuration		Triangular Warning Sign, Tool Kit, Spare Tire At The Rear Of The Frame, ABS, And Air Conditioning.

Detailed Photos
Lntegrated Design:Concrete mixer trucks integrate the mixing drum and the transport vehicle to achieve the integration of concrete mixing and transportation, avoiding the tediousness and time waste of traditional mixer trucks and transport trucks operating separately. Effective And Fast: The mixer truck can mix the concrete immediately at the concrete production site and transport the mixed concrete directly to the construction site, reducing the mixing time of the concrete and the change of concrete quality during transportation, and improving work efficiency and construction speed.Effective And Fast: The mixer truck can mix the concrete immediately at the concrete production site and transport the mixed concrete directly to the construction site, reducing the mixing time of the concrete and the change of concrete quality during transportation, and improving work efficiency and construction speed.Automated Operation: The concrete mixer truck is equipped with an automated control system, which can realize automatic mixing and automatic transportation, reducing the tediousness and errors of manual operation, and improving the accuracy and safety of operation.
Working Principle Of Concrete Mixer TruckThe working principle of a concrete mixer truck is to take out the power from the chassis of the vehicle through the power take-off device and drive the variable pump of the hydraulic system to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then drives the reducer, which drives the mixing device to mix the concrete.Company Profile
Researched by board of directors of Tri-Ring Group Company and approved by Hubei SASAC, Hubei Tri-Ring Motor Industrial Park was initiated on April, 28th 2010 and was put into operation in 2014 according to the revitalization plan of auto industry in Hubei Province and the twelfth five-year plan of Tri-Ring Group Company. The park is in an irregular rectangular shape, with a length of 1148m and width of 643-814m. It has a floor area of 718013m2 and building area of 470700m2.
Hubei Tri-Ring Motor Co., Ltd. has gained over 40 years experiences in the R&D of special purpose vehicles. It created a well-structured, highly competent and highly efficient R&D team which can meet with the trend of auto industry as well as the development demand of the company. Tri-Ring R&D center has been accredited as provincial enterprise technical center, High-tech enterprise, Engineering Research Center and Innovative enterprise etc. ever since 2010. It carries out long-term cooperation with renowned institutes and engineering companies like Wuhan University of Technology, Huazhong University of Science and Technology, TJ Innova Engineering & Technology Co., Ltd. etc.
The company has a national standard vehicle testing center, of which there are various testing facilities of 265 sets, fulfilling 35 different performance tests to chassis, complete vehicles and key auto parts in terms of power performance, fuel consumption performance etc.
The company possesses a flexible assembly line for heavy, medium, light duty traditional diesel chassis and new energy chassis (including subassembly of engine, gearbox and axles), as well as commercial vehicle production line relating to stamping, metal processing, welding, refitting and painting, which is capable of producing various commercial vehicles of 50,000 units annually.
The company has its own cabin factory. It has over 400 sets of equipment for stamping, welding, painting, assembly, metal cutting, heat treatment and power supply, of which there are over 60 sets of press machines of 10T-1300T and over 1000 sets of large scale and medium scale jigs and molds. The cabin factory is capable of developing and manufacturing cabins for heavy, medium, light and agricultural vehicles, with an annual productivity of cabins for 30,000 units heavy and medium vehicles, stamping parts for 800,000 units, and window glass regulators for 1,000,000 units.
Huanmin auto parts company is a wholly-owned subsidiary of Hubei Tri-Ring Motor Co., Ltd. Huanmin is mainly engaged in the manufacturing of parts for auto chassis, of which frame is its key product. Its current annual productivity of frame is 20,000 units.
The company has a comprehensive and mature sales network of over 200 distributors and service network of over 500 service stations all over China. Besides, its products are widely exported to overseas market including South America, Southeast Asia, Africa, Middle East etc. Worth to mention, its electric vehicles were exported to South America in large quantities.
FAQ
Q1. Is your company a factory or a trading company?A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.Q2. What are your payment terms?A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.Q3. What are your delivery terms?A: EXW, FOB, CFR, CIF, DAF, DDU.Q4. How about your delivery time?A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.Q5. Can you customize the products to meet my requirements?A: Yes. We have a professional R&D team, and we can produce products exactly as you require.Q6. What is the price of your products?A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!Q7. Do you test all the goods before delivery?A: Yes, we do 100% testing before delivery.Q8. What service can I get from you?A: We provide lifetime tracking service and a one-year free warranty for all our products. At the same time, we provide free training and technical support to guide you to repair the product. We will also provide original spare parts if necessary, and you only need to pay the shipping cost.
