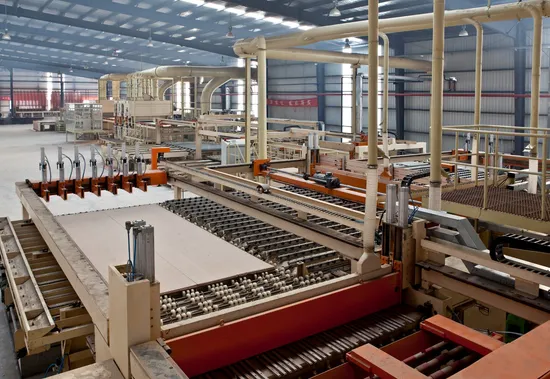

Sanding Machine Sander for MDF, Particle Board, Chipboard

Product Description

Product Description
Technical features of V-sanding machine
Multiple modules and multiple speed range to cater to different types of sanding subject; Angle sanding, floating sprint system, polishing, laser thickness measurement; Direct drive of contact drum roller to yield high transmission; Separate driving system for top and bottom feeding system; Optimized dust collection system design with constant air compensation; Perfect dia.-to-thickness ratio of contact drum roller; Seamless eccentric device for contact drum roller; Modular design to ensure easy combination and upgrade; Comprehensive production data management system; Beautiful industrial outlook design.
Technical features of V4i-wide belt sanding machine Designed for super-thin board (~1.6mm) and high speed (~150m/min) sanding; Reinforced structure design of the main frame, golden diameter-to-thickness ratio of the contact roller, less vibration leads to less mark in the board surface; Multiple sanding setting available, i.e. top-backward and bottom-forward, front-forward and end-forward and end-backward, top-bottom matrix, slide pad technology; Pneumatic clamping system and centralized feeding system achieves smooth and stable board feeding; Centralized lubrication system makes easy for machine maintenance; Informatization control system manages equipment, output and consumption; Digital automation technology available, i.e. sanding head servo adjustment, sanding belt self-tracking system, sanding belt linear adjustment system.

Main technical specifications
1. Multiple modules available
2. Super rigidity frame
1) Cantilever beam precise control based on finite element model;
2) Advanced frame stress relief treatment;
3) High precision locking device
3. High interchangeable modular design
4. Contact drum roller
1) Big diameter contact roller with seamless eccentric device to ensure high running precision;
2) Special surface treatment of the drum roller;
3) Easy one-side adjustment of the contact drum roller.
5. Sprint system
1) Combination of clockwise sanding and anti-clockwise sanding;
2) Angle Sprint system;
3) All-inclusive finishing effect and uniform surface quality.
6. Polishing head
The polishing head with Non-woven cloth roller from 3M company gives a perfect finishing of the board with equal sanding effect of 180-240 grit sanding belt, but saving electricity cost up to 80%.
7. Highly efficient transmission
8.Dual air cell tension device to offset circumference tolerance of sanding belt
9. Highly efficient transmission with low heat generation; Pneumatic clamp feeding system
10. Mechanical lifting
11. Triple blocking for multiple board feeding
1) Laser thickness measurement;
2) Microswitch;
3) Blocking blade plate.
12. Dual suction opening in the dust removal system; Constant air compensation
13. Intelligent control system
1) Mainstream PLC with HMI, Profibus Communication;
2) Monitoring device: Temperature, vibration (Optional) Linear speed, Trend analysis, Malfunction diagnosis.
Economic and technical data

Parameters		Unit	BSG_V-13	BSG_V-16
Board Width		mm	1300	1600
Thickness range	For multiple opening press	mm	3~50	3~50
	For continuous press	mm	2~50	2~50
Working tolerance		mm	±0.05	±0.05
Feeding speed	For multiple opening press	m/min	6~50	6~50
	For continuous press	m/min	2~90/120	2~90/120
Opening of upper frame		mm	280	280
Sanding belt linear speed		m/s	22~33	22~33
Sanding roller motor		kW	75/90	90/110
Combined decks motor		kW	55	55/75
Fine sanding motor		kW	55	55
Incline fine sanding motor		kW	45	55
Polishing motor		kW	18.5	18.5
Sanding belt width		mm	1350	1650
Compressed air consumption		m³/h	4~7	4~7
System pressure		MPa	0.6	0.6

Technical parameters		Unit	BSG_V4i-19	BSG_V4i-23	BSG_V4i-26	BSG_V4i-29
Max.working width		mm	2000	2300	2600	2900
Thickness range		mm	1.6~50	1.6~50	1.6~50	1.6~50
Feeding speed(servo adjustment)		m/min	6-50 10-90 20-150	10-90 20-150	10-90 20-150	10-90 20-150
Opening of upper frame		mm	300	300	300	300
working tolerance		mm	±0.075	±0.075	±0.075	±0.075
Main motor		kW	UP to 132	UP to 160	UP to 160	UP to 160
Feeding motor		kW	UP to 22	UP to 30	UP to 30	UP to 30
Abrasive belt size	Roller type frame size (width x length)	mm	2050x3250	2350x3250	2350x3250	2650x3250
	Combined/fine sanding frame(width x length)	mm	2050x3250	2350x3250	2350x3250	2650x3250
Dust discharge air volume	Roller Sand Frame	m³/h	12800	15000	17000	19000
	Combined head	m³/h	10000	12400	14000	16500
	Fine sanding head	m³/h	10000	12400	14000	16500
	Cleaning device	m³/h	2700	3100	3500	3900
System pressure		Mpa	0.6	0.6	0.6	0.6
Compressed air		m³	4~7	4~7	4~7	4~7
Equipment weight		t	22~39	24~43	26~45	28~48
