Low Elongation Nylon66 Fabric Cord for Tyre Production

Product Description

Product Description

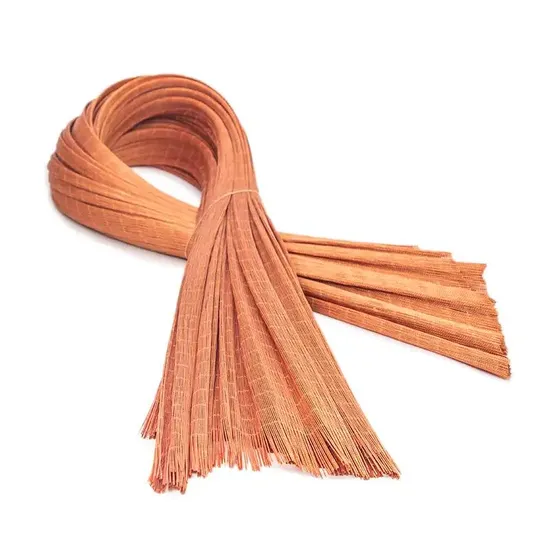

Nylon66 fabric cord
Nylon 66 dipped cord fabric is a tire frame material widely used in the rubber industry. It has excellent properties such as high strength, high temperature resistance, fatigue resistance, and impact resistance. It is especially suitable for bias truck tires, engineering tires, and aviation tires.
Technical Parameters

Test Item		Unit	930dtex/2 (840D/2)	1400dtex/2 (1260D/2)	1400dtex/3 (1260D/3)	1870dtex/2 (1680D/2)	2100dtex/2 (1890D/2)
Warp density		END/10cm	60	100/74/52	88/74	88/68.4	88/74
Weft density		END/10cm	10	8/10/10	8/10	9/9	9/9
Width		cm	145±3.0	145±3.0	145±3.0	145±3.0	145±3.0
Breaking strength		N/pc (kgf/pc)	≥137.2 (14.0)	≥215.6 (22.0)	≥313.6 (32.0)	≥284.2 (29.0)	≥313.6 (32.0)
EASL		%	8.5±0.6 (44.1N) (4.5kgf)	8.5±0.6 (66.6N) (6.8kgf)	9.0±0.8 (100N) (10.2kgf)	8.5±0.6 (88.2N) (9.0kgf)	9.0±0.6 (100N) (10.2kgf)
Breaking elongation		%	22.5±2	21.5±2	22±2	22.5±2	22±2
Hot air shrinkage (150ºCx30min)		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Adhesive (H extraction method)		N/cm (KGF/cm)	≥107.8 (11.0)	≥137.2 (14.0)	≥156.8 (16.0)	≥156.8 (16.0)	≥156.8 (16.0)
DPU		%	5.0±0.9	5.0±0.9	≥3.5	5.0±0.9	≥3.5
Diameter		mm	0.53±0.03	0.65±0.03	0.78±0.03	0.74±0.03	0.78±0.03
Twist	twist S	T/10cm	46.0±1.5	39.0±1.5	32.0±.2.0	32.0±.1.5	32.0±.2.0
	twist Z	T/10cm	46.0±1.5	37.0±1.5	32.0±.2.0	32.0±1.5	32.0±.2.0
Moisture		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0

Remarks: The above indicators are normal varieties, and the indicators can be adjusted according to the special requirements of users.
Company Profile
Limwell New Material Tech.
In 2013, Shanghai Limwell New Material Tech. Co., Ltd. started the operation in Shanghai, China.
Limwell is an exportoriented comprehensive company, dedicating efforts mainly on the manufacturing and trading of rubber additives and tyre specific materials. Our manufacturing bases are in Shan-dong and Zhe-jiang provinces of China. In addition to that, we have also built partnership with a number of China local plants to enrich our product family.
Our Products include processing additives, anti-ozone waxes, masterbatches, resins, peroxides, flameretarders, and a wide spectrum of other materieals used in tyre and rubber products. With the belief in mind to provide both trusted product quality and outstanding sales service, we have become the stable supplier for a great number of tyre and rubber products plants all around the world.
We uphold the concept ''quality goes first, services upmost, human oriented and sustainable development'', and we're willing to be the best fit partner on your way to success!
Our Plant
One of our plants is located in the Zheshang Science and Technology Park in Jiashan, Zhejiang. This plant is at the center of prosperous Jiangsu Zhejiang Shanghai economic zone, and has achieved fasr and sustainable growth since the establishment due to strong market demand and our outstanding research and quality control capabilities.
This plant can provide high quality masterbatches, homoginizer, vulcanizer, scorch retarder and several other rubber processing additives. In 2014, we paseed ISO9001 and ISO14001 certificate audit. In 2016, we passed the TS16949 Quality System and OGSAS 18001 certificate audit.
In the last development procedure, we have also paid attention to operate in a sustainable and environment friendly manner, strictly adhering to the national and local environment protection regulations.
