Milk Powder Blending Machine Food Powder Mixer Mxing Machine From Brightsail

Product Description

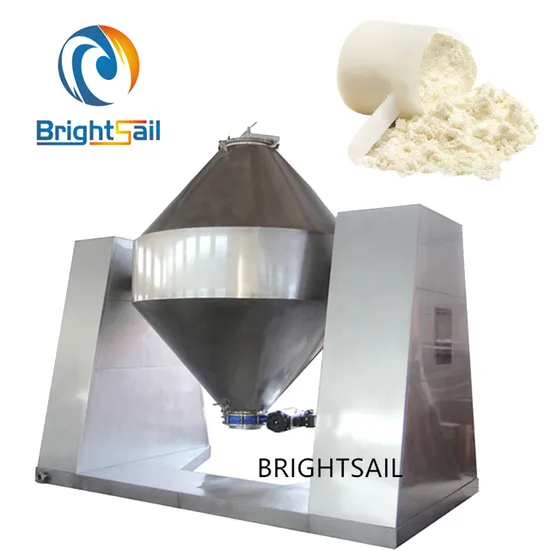

Milk powder blending machine food powder mixer
mxing machine from Brightsail Product Description BSW Pharmaceutical Powder Mixing Machine is widely used in pharmaceutical, nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.BSW Cone Mixer is suitable for mixing many kinds of dry powder,such as detergent powder,proteion powder,spice powder,coffee powder...etc.
Features of W Shape Blender
1) Simple structure, easy in installation and maintenance. 2) High mixing efficiency,free of dead corner and even mixing.
3) Without interior settings inside, the mixer is very easy to clean. 4) Agitator can be equipped to strengthen the mixing effect. Detailed Photos 1) Inlet port: raw materials enter the mixer from the inlet port. If you need to feed the material automatically, we will design a new inlet port then the ZKS vacuum feeder can be connected to the mixer. 2) Agitator: Forced agitator can make mixing effect better if your material is a bit sticky or doesn't flow well.
3)Discharge part: The final product can be discharged by discharge valve.The standard is manual discharge valve, and you can also choose pneumatic discharge valve. Technical Parameter of our W Shape Blender
BSW Protein Vitamin Cone Mixer is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing barrel via quick-open feed port manually or by vacuum feeder. With the rotation of mixing barrel, materials can be completely mixed with high degree of homogeneity

Model	BSW-180	BSW-300	BSW-500	BSW-1000	BSW-1500	BSW-2000	BSW-2500	BSW-3000	BSW-4000
Full volume(m³)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Turn speed(rpm)	12	12	12	12	12	12	12	7.8	7.8
Power(kw)	1.1	1.1	2.2	4		7.5	7.5	7.5	11
Overall size(L*W*H)(mm)	1400* 800*1850	1685* 800*185	1910* 800*1940	2765* 1500*2370	2960* 1500*2480	3386* 1900*3560	3386* 1900*3560	4750* 2500*3680	4750* 2500*3680
Gross rotation height (mm)	1850	1850	1950	2460	2540	3650	3650	3700	3730
Weight(kg)	280	310	550	810	980	2150	2150	2500	3200
