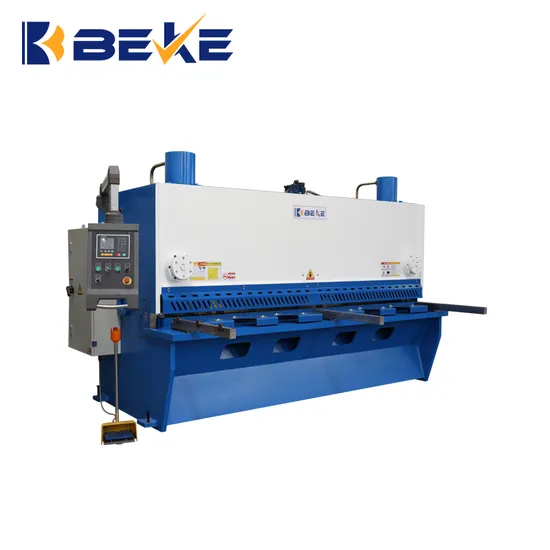

Cutting-Fold-Bend-Machine Hydraulic Shearing Iron Plate Cutting Machine
Basic Info.
Model NO.
qc11k
Certification
CE, ISO 9001:2000
Condition
New
Warranty
2 Years
Main Motor
Germany Siemens
Hydraulic Valve
Germany Bosch-Rexroth
Oil Pump
American Sunny
Ball Screw and Linear Guide
China Taiwan Hiwin
Transport Package
Wooden Box or Container Directly
Specification
4100x1700x1950mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Product Description
Product DescriptionDetailed Photos
Product Parameters
| ITEM | VALUE |
| Model | QC11K 8X3200 |
| Max cutting thickness | 8mm |
| Max cutting width | 3200mm |
| Cutting angle | 0.5°-2° |
| Backguage distance | 500mm |
| Throat depth | 150mm |
| Main motor power | 11kw |
| Weight | 7000kg |
| Size | 4100x1700x1950mm |
| The rolling guide structure is supported by three points;The shear angle of the tool holder can be adjusted in the range;Shear travel can be adjusted arbitrarily;Manual lifing of the retaining function;The inside of the wallboard is equipped with a lubricating oil pump;The standard E21S numerical control system controls the cut count and the post-block;A variety of numerical control systems such as DAC360 can be selected.Now the shear can provide variety of choices and features for the products and function, to realize the optimal Shearproperties and solutions.Multilingual display;The material retaining supports a variely of shaft control modes such as servo molor, two speed AC motor and frequency converter; Knife edge clearance, shear angle, shear length and shear pressure control; Automatic calculation of shear parameters based on material table;Manual, single step and program modes are optional; The system can oontrol the X-axis resolution accuracy at rear retaining material to 0.01mm. | |
