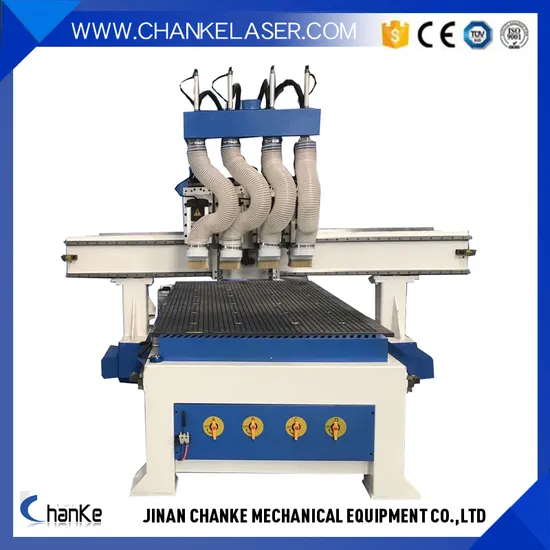

Quality 1325 Wood Door Engraving CNC Router

Product Description

This machine is used for the produce of the wooden door .

Performance parameters:

Working travel	X axis	1300mm
	Y axis	2500mm
	C axis	200mm
Table structure		Vacuum table and T slot
orbit		HIWIN or PMI square orbit
Transmission type		X,Y Rack,Z Ball Screw
Repositioning accuracy		±0.05
Working accuracy		±0.05
Max air move speed		45000mm/min
Max working speed		20000mm/min
Spindle parameters	Type of cooling	air cooling spindle
	power	4.5kw/3.5kw /6.5kw air-cooled spindle
	speed	0-18000r/min
inverter		5.5kw Sunfar inverter
Drive system		YAKO-YKA2811MA
Command code		G code
Control system		WEIHONG-NK105/Syntec
Oiling system		Manual
Working voltage		AC380V/3PH/50HZ

Guarantee:
12 months for the whole machine (not include spindle,spindle:6 months). Within 12 months under normal use and
maintenance, if something is wrong with machine, you will get spare part for free. Out of 12 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.

Technical support:
1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

4, If you will not be able to install the machine and put together by yourself, we can send two engineers to make assembly, trial running, training and after sales& services in your factory. You should offer round-trip air tickets, local accommodation, meals, traffic and communication.
Besides, subsidy for the two engineers is USD200/day/person.

After sales services
Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Applicable industries and materials:

1.Furniture: wooden doors, cabinets, plate, office, solid wood furniture, tables, chairs doors and windows

2.wood products: speakers, game cabinets, computer tables, sewing machine, musical instruments

3.Plate processing: insulation, plastic, chemical pieces; the PCB; moving the car body, Bowling orbit stairs; carbon mixture of anti-fold special board, epoxy resin, ABS, PP, PE

4.Decoration industry: acrylic, PVC, MDF, artificial stone, organic glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting

Performance

1.Four spindles can use 4 different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with two tools.
2.the vacuum pump holds tightly the carving materials which makes operating more reliable an convenient.
3.leading rack rotation with high speed and strength.air speed can be 50m/min,when working in wave board also can be 25m/min.
4.our software is compatible with type3/artcam/castmate/weitai and so on .
5.advanced USB connection with DSP operating system,fast &smooth processing,our routers can completely work off-line.
6.the whole welding structure is shaped through tempeing treatment,making it solid and long lasting
