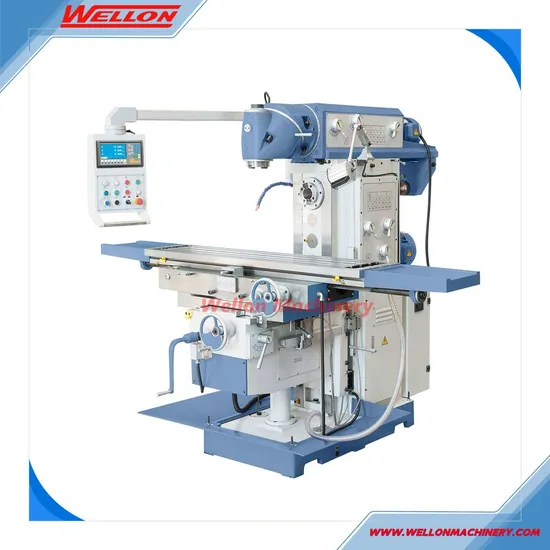

XL6436 XL6436c XL6436cl Universal Milling Machine with Swivel Head
| US$9,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6436
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
T Slot
3/18/80
Arm Travel
550mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
WELLON
Origin
Tengzhou China
HS Code
84595900
Production Capacity
200 PC/Month
Product Description
Products Description:XL6436 XL6436C XL6436CL universal milling machine with swivel head
Performence Features:
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials Technical parameter:
| Specifications | Unit | XL6436 | XL6436C | XL6436CL |
| Table size | mm | 1325×360 | 1325×360 | 1600×360 |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed speed X axis | mm/min | 30~750 | 30~750 | 30~750 |
| Table feed speed Y axis | mm/min | 20~500 | 20~500 | 20~500 |
| Table feed speed Z axis | mm/min | 15~375 | 15~375 | 15~375 |
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | 7:24 IS050 (H) 7:24 IS050 (V) | 7:24 IS050 (H) 7:24 IS050 (V) | |
| Arm travel | mm | 550 | 550 | 550 |
| Distance from spindle to table | mm | 196-656 | 196-646 | 196-646 |
| Distance horizontal spindel to table | mm | 20-480 | 20-470 | 20-470 |
| Distance spindle to arm | mm | 200 | 200 | 200 |
| Spindle speed range | r.p.m | 60-1750 (V) 60-1800 (H) | 60-1750 (V) 60-1800 (H) | 60-1750 (V) 60-1800 (H) |
| Spindle speed steps | steps | 12 | 12 | 12 |
| T-slots(NO./width/pitch) | mm | 3/18/80 | 3/18/80 | 3/18/80 |
| Main motor power | Kw | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) |
| AC servo feed motor torque | N.m | 10 | 10 | 10 |
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2245×2100×2000 |
| Net weight | kg | 2685 | 2750 | 2800 |
Standard Accessories:
Draw bar
Coolant device
Coolant tray
Universal mill head
Automatic central lubrication
Mill arbors
Tools
Optional Accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
LED machine light
