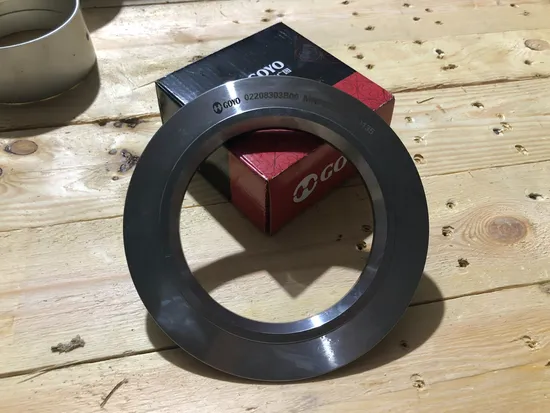

Heavy Goyo Steel Rolling Mill Production Line Spare Parts Roll Shaft Oil Film Bearing

Product Description

Reducing and Sizing Mill Unit The unit consists of a two-stand reducing mill and a two-stand sizing mill. The reducing mill is composed of a gearbox and a rolling mechanism, with the gearbox designed with three shift mechanisms, allowing for eight speed configurations. Similarly, the sizing mill is composed of a gearbox and a rolling mechanism, with the gearbox also designed with three shift mechanisms, allowing for eight speed configurations. The entire unit can achieve 64 speed configurations.
The rolling mill consists of a conical box and a roller box with a 45° spiral bevel gear transmission system. The reducing mill uses a roller box that can withstand high rolling forces, while the sizing mill uses a super-small roller box, making the distance between stands only 150mm, enabling guide-free rolling.
The reducing and sizing mill unit has the following advantages:
Hot Rolling: Improves the mechanical properties of the product, reduces secondary processing workload, and results in high value-added products. Sizing: Increases product accuracy and yield rate. Single Pass System: Simplifies mill setup, reduces inventory of rolls and guides, lowers production costs, increases mill utilization, and boosts capacity. Free Sizing: Enhances rolling flexibility and allows for timely delivery. Technical Parameters Model: 2 stands of 200 + 2 stands of 150 Rolling Specifications: 5.0~25mm Rolling Speed: Maximum 110m/s Size Accuracy: ±0.1mm Rolling Temperature: ≥750ºC

FAQ
Are you a trading company or a manufacturer?
We are a professional rolling mill manufacturer with 29years of experience supported by the chinese government. We offer tailor made high speed wire rod and bar hot rolling mill product solution and turnkey project.
How many successful projects have you done?
Since 1996, GOYO's products and services have been exported to more than 20 countries and regions, such as China, Malaysia, Russia, Thailand, South Africa, India, Ethiopia, Philippines, Vietnam, Indonesia and so on.
How do you guarantee quality?
Quality is our lifeline.
GOYO has a complete quality assurance system and an excellent quality management team. We insist on pre-production samples before mass production and final inspection and trial operation before shipment;
At the same time, we have obtained the international ISO, BV and SGS quality system certification.
How to get a quote?
Please tell us the following details by email or other means, so that we can recommend suitable plans and layouts to you:
Turnkey project or part of equipment or parts
Raw material (bill or scrap) and its size
Finished product and its dimensions
Whether a furnace is required and what fuel is used
Your planned annual output and working hours
Available factory area
Please let us know if you have any additions or questions.
