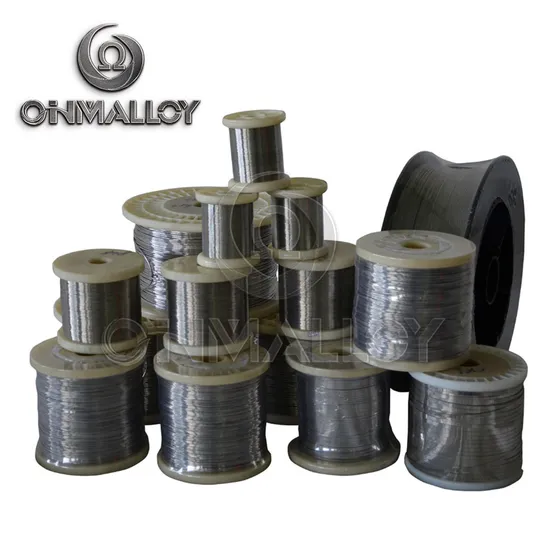

Manufacturer of Thermocouple Alloy Wire Type K/E/J/T/N/L

Product Description

A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.
Thermocouple temperature range and tolerance

Type	Standard	Operating temperature range (°C)		Tolerance(°C)
		Long term	Short term	Grade	Temperature range	Tolerance
Type K	GB/T2614 K	1200	1300	I	-40~1100	±1.5°C/±0.4%t
				II	-40~1300	±2.5°C/±0.75%t
Type N	GB/T17615 N	1200	1300	I	-40~1100	±1.5°C/±0.4%t
				II	-40~1300	±2.5°C/±0.75%t
Type E	GB/T4993 E	750	900	I	-40~800	±1.5°C/±0.4%t
				II	-40~900	±2.5°C/±0.75%t
Type J	GB/T4994 J	600	750	I	0~750	±1.5°C/±0.4%t
				II		±2.5°C/±0.75%t
Type T	GB/T2903 T	300	350	I	-40~350	±0.5°C/±0.4%t
				II		±1°C/±0.75%t
				III	-200~40	±1°C/±1.5%t

Application:
