Tongda OE40d High Quality Open End Spinning Machine for Yarn Production Line

Product Description

Open End Spinning Machine
It is suitable for yarn count 3s to 40s , and raw material
can be both raw cotton and waste cotton.

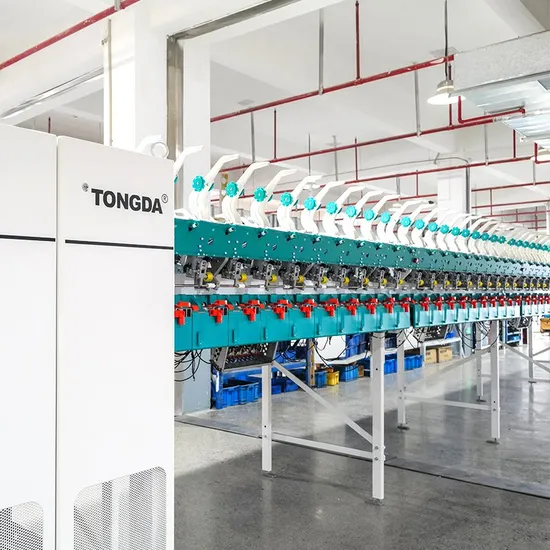

OE40D Open end spinning machine
Spinner
It fully collects and analyzes data, optimizes spinner for spinning-yarn quality. Patent system processes various materials, aids customers, cuts labor. Ceramic-coated opening reduces fiber wear, extends life.

Optimal Joint System
The standard pneumatic lifter has 0.1 sec breaking response and high reliability. The unique joint system makes the roller guide yarn before the winding roller during jointing to prevent bobbin impact. Exclusive math jointing and stepping roller feeding precisely control volume and time for joint strength and shape.
Automatic Doffing Device
Intelligent start: semi-auto mode replaces labor, enables auto doffing without break ends, cuts labor intensity. High efficiency: standard doffing in 20s from fixed position. Intelligent function: supports auto and manual doffing modes.
Rotor bearing no need to disassembly
The device greatly reduces the labor intensity of the maintenance work, ensures the grid distance stability, and improves product consistency.
Health Internet System
Program of machine can be upgraded online, online monitoring and early warning of the main transmission components, and user can know the actual operation of equipment in real time around the world.
Electronic Tension System
The digital control can reduce the complicated mecharnical adjustment work. The user can directly adjust the tension ccoefficient in the monitor of headstock, and the adjustment precision can reach 0.001, which ensures the stable forming for winding package.
Automatic Take Out Impurity System
The system will reduce the labor intensity of the operator, and also provide a more stable negative pressure environment for the machine, which makes spinning production more stable and improves the consistency of the yarn quality.
Positive Pressure Cooling System
The system can reduce the accumulation of flying and dust in the inner cavity of headstock and tail box, reduce the labor intensity of the maintenance worker, improve the heat cooling condition of the electrical components, thereby increasing the stability of the runniring of the machine and reducing the energy consumption.
Main technical parameters

Item	unit	Technical index
Rotational Speed of Revolving Cup	r/min	45000-110000 independent drive from two way, and with frequency conversion adjustment
Doffing Speed	m/min	With maximum of 200
Doffing Angle	Degree	30°-42°step-less regulation
Rotational Speed of Opening Roller	r/min	6000-11000 independent drive from two way. and with frequency conversion adjustment.
Air capacity of Air Exhaust Fan	m3/h	≤9000, regulated by frequency transformer
Density of Optimal Yarn	tex(Ne)	120-15 (5-40)
Length of Optimal Fiber	mm	≤60mm
Draft Ratio	Times	20-280
Scope of Twist	t/m	200-2000
Feeding Bar	ktex	2.5-7
Draft Ratio of Tension	Times	0.6-1.5
Diameter of Opening Roller	mm	65
Diameter of Revolving Cup	mm	33/34/36/40/50/54
Spindle Distance	mm	230
Total Spindle	Spindle	≤720
The Number of spindles of middle stage in first section	Spindle	20
Specification of Flat Bobbin (Inner Diameter x Length)	mm	Φ42 (Rolling edge) /54 (Straightedge ) Φ42 (Rolling edge) /50 (Straightedge )
Specification of Taper Bobbin (Inner Diameter x Length)	mm	2°Φ44 (Rolling edge) /65 (Straight edge)
Specification of Can (Outer Diameter / Height)	mm	16''(Φ400 I,18" (Φ450),20" (Φ530) /standard height 900. 1100 is optimal
Specification of Rolling (Diameter)	mm	As to flat bobbin. Φ300 is at maximum; As to taper bobbin, Φ270 is at maximum.
Weight of A Full Bobbin	kg	With maximum of 4
Lifting Device		Automatic air drive lifting
Length of Device	m	≤77.8
Weight of Device	kg	Head+ the middle part in N section+ Tail (N≤30) 3500+800*N+3100
Maximum Loading Volume	kw	195

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
