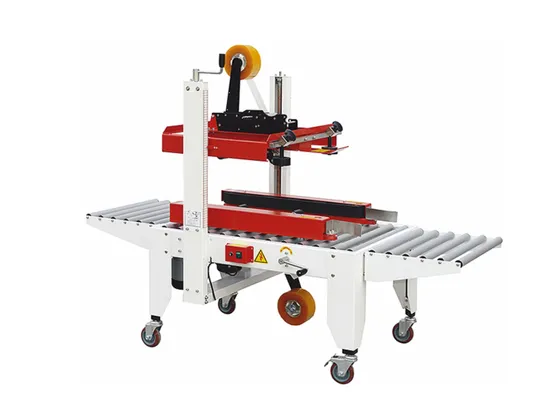

Ty-Zg500+Ty-Jb500L Automatic Folding Sealing Machine

Product Description

Product Description Automatic folding and sealing machine is an automated packaging equipment mainly used to automatically complete the folding and sealing operations of cardboard boxes in assembly line operations. It uses a pneumatic folding mechanism to automatically fold the four upper covers of the cardboard box flat and seal them with tape, achieving a fast, smooth, and standardized sealing effect.
Working principle and operation process:
The working principle of the automatic folding and sealing machine is driven by two side belts to fold the four bendable panels formed on the bottom of the cardboard box and place the items inside. Subsequently, the cardboard boxes are transported to the upper folding device of the sealing machine, which automatically completes the folding and sealing actions. The specific operation process includes: after the product is packed, it is sent to the sealing machine through the conveyor chain, and the box clamping belt clamps the two sides of the cardboard box. The front short tongue and rear short tongue are automatically bent by the tongue pressing frame and the tongue punching frame respectively, and the long tongue is automatically bent and pressed towards the middle through the guide rod, finally completing the sealing and shaping action.
Produduct Advantages 1. Efficiency: Able to process a large number of cardboard boxes in a short period of time, significantly improving packaging efficiency.
2. Stability: Adopting advanced technology and high-quality components, the operation is stable and reliable, reducing failures.
3. Accuracy: It can be adjusted according to different carton sizes to ensure neat and secure sealing.
4. Space saving: Compact design, small footprint, suitable for environments with limited space.
Detailed Photos
Product Parameters

Minimum carton size	L340*W200*H180mm
Maximum carton size	L600*W500*H500mm
Belt speed	6-8boxs/min
Mechanical dimension	L1700*W930*H1510mm L1910*W1150*H1500mm
Applicable power supply	220/380V 50Hz
Applicable air source	6kgf/cm2,100nl/min
Power consumption	1.0KW
Applicable tape	W48,60,75mm choose one

Packaging effect
Cooperation process
After Sales Service After-sales worry free source manufacturersIn order to provide customers with perfect and thoughtful service, free customers from worries.Our company has developed a perfect after-sales service system and effective after-sales service measures, and opened a special after-sales service hotline to provide users with satisfactory questions and technical support; And has a after-sales service department, regular return visits to customers. The company currently has more than ten professional after-sales service engineers as a strong after-sales service team, to provide protection for your after-sales service. Our company makes the following maintenance service commitment to you, and provides you with maintenance services in accordance with the requirements of the service commitment.
1. After the successful installation and commissioning of the machine, the company will enter customer files and send professional after-sales service engineers to take charge of technical tracking service and regularly track the use of the machine. If there is a problem with the machine, you can call our phone or notify our after-sales service department in writing. We will contact you by phone within one hour of receiving the notice to understand the detailed cause of the failure and determine the on-site maintenance time.
2. When the after-sales service engineer comes to the house for maintenance, the machine will be inspected in detail first, and then the cause of the failure will be introduced to you in detail, and then the machine will be repaired
After you confirm that the repair is completed, sign the after-sales service operation sheet to confirm.
Company Profile
FAQ
Q1: What is your machine guarantee? A1: Usually the guarantee period is for 1 year, and we will keep contact with our customers for after-sales service. We're aim to produce better machines and let our customers be satisfied. Q2:What's the machine voltage or power of your machine? A2:Usually the voltage in our country is 220V,50HZ, single phase, or 380V, 50HZ, 3 phase. If you have special requirement, pls tell us, we will vetify the voltage according to your requirement. Q3:How to install the machine for us? A3:We can instruct the installation by vedio, email or picture, and for large project, we can also arrange our technical workers to help you to install the machine in your country . Q4: If we have problems when using your machine, what should we do? A4: If you have any problem, just contact us, we will help you to solve it, and if necesary, we will arrange our engineers to help you in your country. Q5: What about the shipping methods? A5: For urgent order and light weight, you can choose express: FedEx, TNT, DHL or EMS; for heavy weight, you can choose by air or by sea to save cost. Q6: What about the payment methods? A6: We accept T/T, L/C for a big amount, and for small amount, you can pay by Western Union, Moneygram Q7: How much does it cost to ship to my country? A7: It depends on seasons. Shipping cost is different in different seasons. You can consult us all the time. Q8: What's your delivery time? A8: Usually we produce within 7-15days after the payment confirmed. It is also depend on the machine itself, if you place order with us, and need to customize the machine as your requirement, the producing time is longer.
