Upring Fire Sprinkler 68 141 Degree Fire Fighting Sprinkler 1/2 Bsp Fire Sprinkler Zstx-15

Product Description

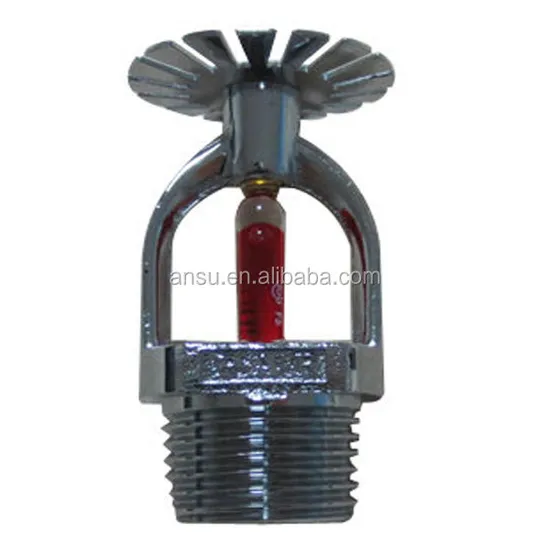

Product Description Fire Sprinkler
Nominal diameter: 15mm, 20mm
Flow coefficient: 80±4, 115±6
Temp rating: 57C, 68C, 79C, 93C,141C, 182C
Glass bulb color: orange, red, yellow, green, blue, purple
fire sprinkler is key components in automatic sprinkler system. It plays detecting fire hazards
and extinguishing fire via automatic water spraying. It is widely used in various civil buildings
and high civil - industrial buildings what are sorted as low, medium or high fire hazard protected area.
It is applicable to the fire protection of many important places such as computer room, library, archives,
treasure house, power distribution room, and telecommunication center.

Characteristics and Functions
Model	Fire sprinkler
Material	Brass, chrome plating
Type	FM approved brass color upright type ESFR fire sprinkler
Norminal diameter(mm)	15DN or 20DN
Connecting thread	R1/2 or R3/4
Glass bulb color	Red
Temperature rating	68°C
Flow Rate	80±4 or 115±6
Bulb	3mm or 5mm
Response	quick response

Basic Parameters of Fire Sprinkler
Model	Norminal Diameter	Thread	Flow Rate	Style
T-ZSTP	DN15	R1/2	80±4	Upright/Pendent
	DN20	R3/4	115±6
T-ZSTX	DN15	R1/2	80±4	Pendent
	DN20	R3/4	115±6
T-ZSTZ	DN15	R1/2	80±4	Upright
	DN20	R3/4	115±6
T-ZSTBS	DN15	R1/2	80±4	Horizontal Sidewall
	DN20	R3/4	115±6
ZSTDY	DN15	R1/2	80±4	Pendent
	DN20	R3/4	115±6

Nozzle Rated Temp	Max Ambient Temp	Glass Ball Color
57°C	27°C	Orange
68°C	38°C	Red
79°C	49°C	Yellow
93°C	63°C	Green
141°C	111°C	Blue
182°C	152°C	Purple
