Hardness Tester Tablet Granule High Precision Hardness

Product Description

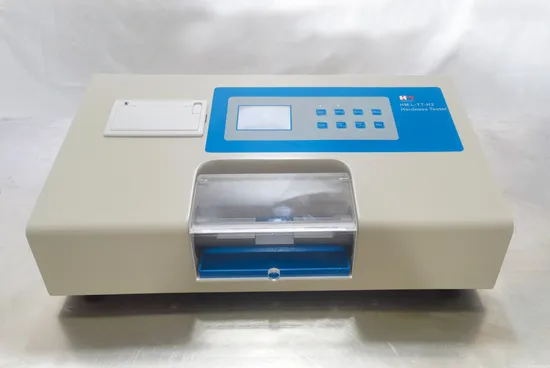

Testing & Analytical Instruments HM L-TT-H series Hardness Tester
Usage:To detect breaking hardness of tablet.
Features: High-precision pressure sensor, digital display. Auto-display, auto-hold and auto-memory. Auto-reset, and automatic loop test; Automation: auto-test, auto-diagnose, auto-alarm.
Technical parameters:
--Test range: 0-20kgf.
--Test accuracy: ±0.05kgf.
--Tablet diameter range: ≤ 40mm.
Testing & Analytical Instruments
HM L-TT-M Multifunction Tablet Tester
Usage: To test hardness, friability, dissolution and disintegration of tablet.
Features: Reasonable structural design. Stable performance, easy to operate. Accurate and reliable detection data.
Technical parameters:
--Hardness testing: 0~200N, ±5N ;
--Friability testing: Ø286mm, 2pcs, 25rpm;
--Dissolution testing: 25~250rpm stepless speed regulating, ±1%, 6pcs cups;
--Disintegration testing: 55±1mm, 2pcs cups.
HM L-TT-DS series Tablet Dissolution Tester
Usage:To test dissolution speed and degree of tested medicament from solid preparation.
Features: Rotate basket and plasm haulm are made of imported SUS316L. Automatically and intelligently control temperature, rotary speed and time. The preset and real-time data can be displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm
Technical parameters:
--Speed: 20-200 rpm, ±2rpm;
--Temperature: R~45.0ºC, ±0.3ºC;
--Single cup and single haulm / Three cups and three haulms in row / Six cups and six haulms in row / Eight cups and eight haulms in two rows.
HM L-TT-FR series Tablet Friability Tester
Usage:To test the friability and other physical intensity of non-coating table, for example crush intensity, etc.
Features: The cylinders are made of high quality transparency organic glass. The rotary speed and revolution of cylinders can be preset at any time; either preset or real-time value is displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm.
Technical parameters:
--2 cylinders;
--Rotary speed: 20~90 rpm, ±1rpm;
--Rotary revolution range: 10-900 circles, ±1circle.
HM L-TT-DI series Disintegration Tester
Usage:To detect disintegration of solid dosage in prescriptive conditions.
Features: Adopts imported stainless steel, including lifting nacelles, hanger rod, etc. Automatically and intelligently control the temperature, time and nacelle trip frequency. The preset and real-time data can be displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm
Technical parameters:
--Temperature: preset range 20-45ºC;
--controlling accuracy ±0.5ºC;
--Single test station / Double test stations / Three test stations.
HM L-TT- T series Thickness tester
Usage:To measure thickness of peak and wall of capsule, diameter and thickness of various tablets, pills and so on
Features: High-accuracy test with the most precise, high-quality centigrade meter
Technical parameters:
--Test range: Tablet: 0-30mm diameter and thickness;
Capsule: 00, 0, 1, 2, 3, 4, 5 model
--Test accuracy: ±0.01mm
--Desk type / Hand held type.
HM L-TH Thaw Tester
Usage:To test thaw, softening, and solution of the suppository, vaginal tablets and other solid preparations under rated conditions.
Features: The three net frames can be synchronously turned artificially. The magnetism-pumped circular water current can heat the system evenly. Temperature and time controlled automatically. The preset and real time data can be displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm.
Technical parameters:
--Synchronously turned artificially;
--Temperature: 37±0.5ºC.
